Washer F 20 | 20 | 11 | 2 | M10

morepic-1

morepic-2

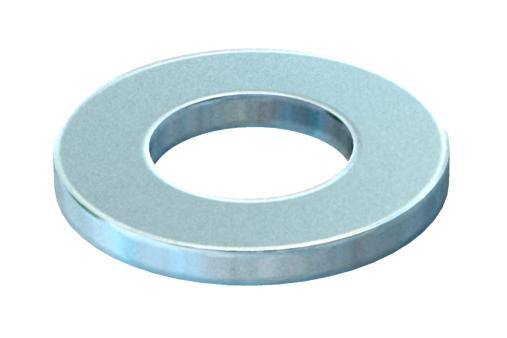

Washer F

Item no. 3402460 | EAN 4012195300854

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

Washer for universal use.

Technical data

Technical data

Diameter	20 mm
Dimension	M10
Dimension d	11 mm
Dimension d max.	20 mm
Dimension d min.	20 mm
Dimension h	2 mm
External diameter	20 mm
Hole diameter	10,5 mm

Hole shape	Round
Inner diameter	10,5 mm
Material	Steel
Material thickness	2 mm
Plate thickness	0,08 in
Surface	Hot galvanized
Thread	M10

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
966 M6 F	12 mm	12 mm	6.6 mm	1.6 mm	M6	3402444	piece	100 piece
966 M8 F	16 mm	16 mm	9 mm	1.6 mm	M8	3402452	piece	100 piece
966 M10 F	20 mm	20 mm	11 mm	2 mm	M10	3402460	piece	100 piece
966 M12 F	24 mm	24 mm	13.5 mm	2.5 mm	M12	3402479	piece	100 piece
