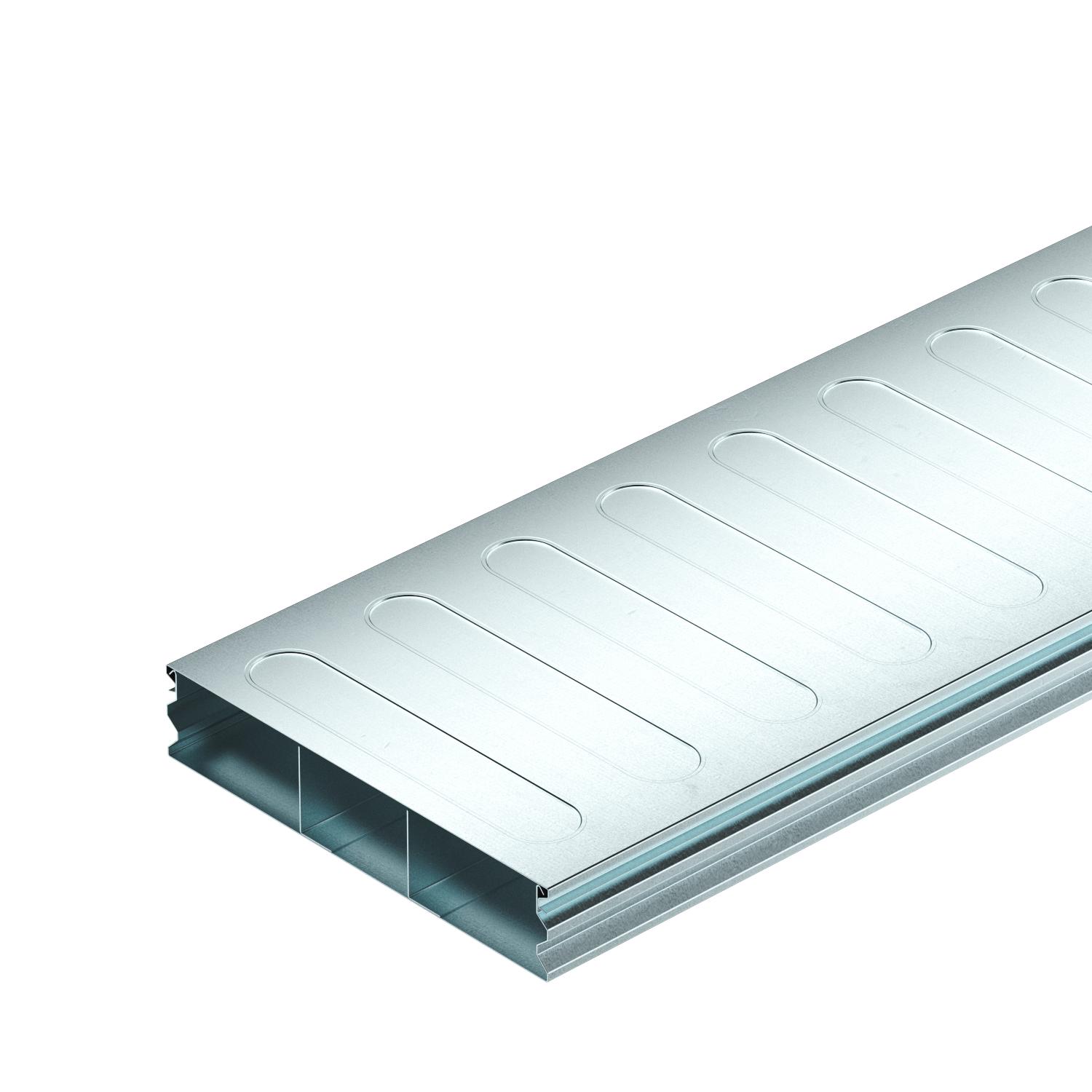

Underfloor duct, 2 pieces, 3-compartment, duct height 48 mm
Item no. 7400281 | EAN 4012197352080
- Product description
-
Product descriptionUnderfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.
-
- Technical data
-
Technical data

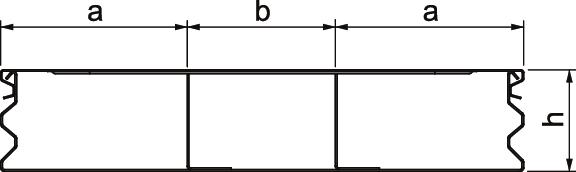

Application area Screed-covered CO₂ Footprint (GWP) Cradle-to-Gate 9,1653 kg CO₂e / 1 Meter Cross-section, draw a 3854 mm² Cross-section, draw b 3184 mm² Decouplable no Dimension 2000x250x48 Dimension a 90 mm Dimension b 70 mm Dimension h 48 mm Duct height, min. 48 mm Floor plate yes Height 48 mm Length 2000 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Removable cover yes Surface Strip galvanized Trunking width, min. 250 mm Usable cross-section 10892 mm² Vertical load, large area to 1,500 N Width 250 mm - All types
- Downloads
-
Data sheet S3 25048-2 / 7400281 , 0.17MB , pdfEU declaration of conformity S3 25048-2 / 7400281 , 0.10MB , pdfREACH Declaration of conformity S3 25048-2 / 7400281 , 0.12MB , pdfRoHS Declaration of conformity S3 25048-2 / 7400281 , 0.13MB , pdfMounting instructions In-concrete system IBK , 3.27MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
