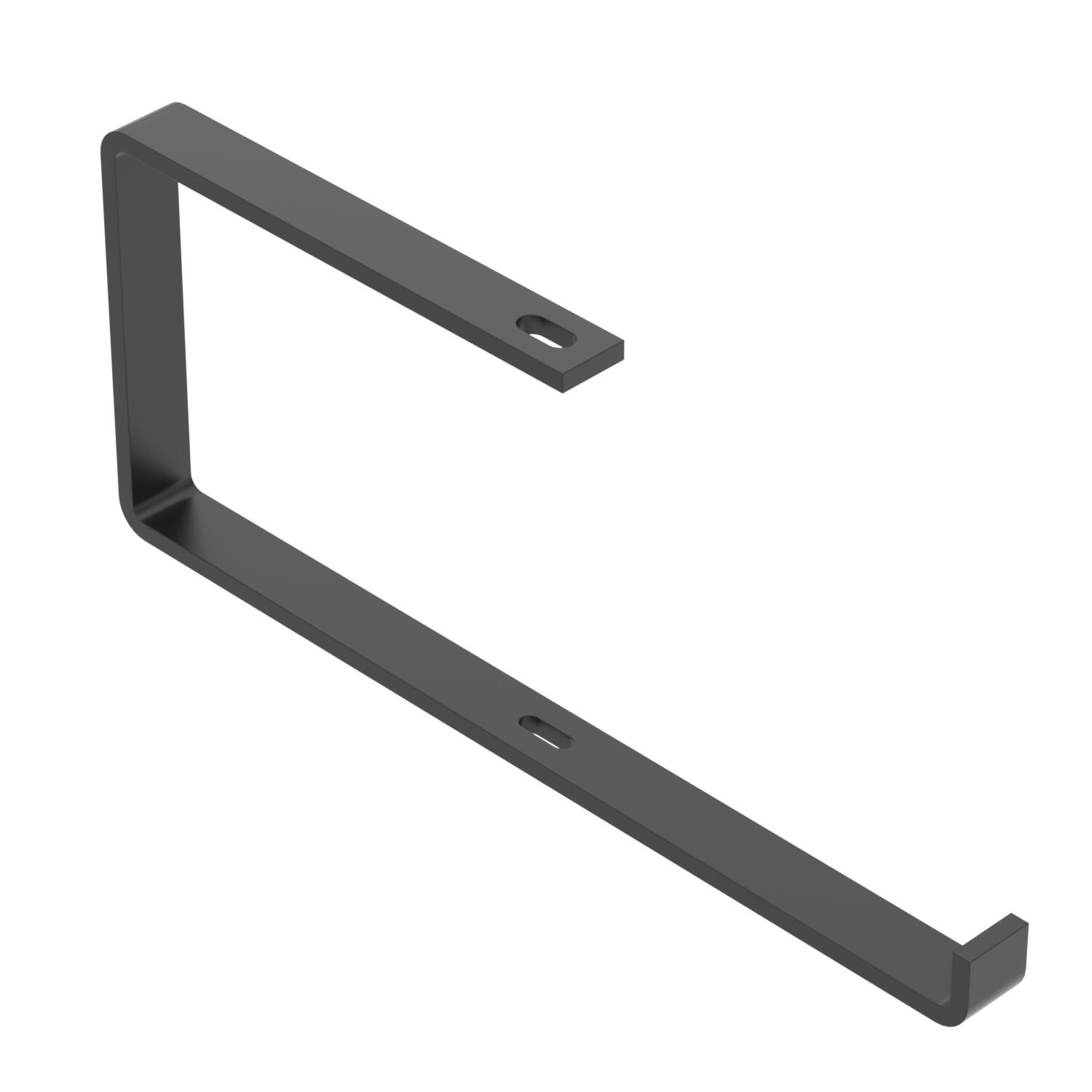

Suspension bracket, black

Item no. / Types

Width

Height

F in kN ceiling

F in kN wall

for width max.

Hole diameter

Colour

Product description

Product description

Suspension bracket for cable support systems to fasten directly under the ceiling or as a suspension with threaded rods M10. Black coated.

Technical data

Adjustable	no
Colour	Jet black; RAL 9005
Dimension	B400mm
Dimension B	415 mm
F in kN ceiling	0,2 kN
for width max.	400 mm
for width min.	400
Height	180 mm
Hole diameter	11 mm
Length	30 mm
Maintain electrical functions	no

Material	Steel
Material thickness	8 mm
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Suitable for metric threaded rod	10
Surface	PES135 - Polyester
Tray fastening	Screw-on
Version for	Suspension bracket (C clamp)
Width	431 mm

All types

All types

Types	Width	Height	F in kN ceiling	F in kN wall	for width max.	Hole diameter	Colour	Item no.	Quantity	SSU
MAH 60 100 FSKSW	40	100	10.5	94	Jet black; RAL 9005	-	-	6358740	piece	1 piece
MAH 60 200 FSKSW	40	200	10.5	195	Jet black; RAL 9005	-	-	6358742	piece	1 piece
MAH 60 300 FSKSW	40	300	10.5	295	Jet black; RAL 9005	-	-	6358744	piece	1 piece
MAH 60 400 FSKSW	40	400	10.5	395	Jet black; RAL 9005	-	-	6358746	piece	1 piece
AHB 100 FTK SW	127	180	0.6	-	100	11	Jet black; RAL 9005	6363875	piece	1 piece
AHB 200 FTK SW	231	180	0.6	-	200	11	Jet black; RAL 9005	6363877	piece	1 piece
AHB 300 FTK SW	331	180	0.35	-	300	11	Jet black; RAL 9005	6363878	piece	1 piece
AHB 400 FTK SW	431	180	0.2	-	400	11	Jet black; RAL 9005	6363879	piece	1 piece
