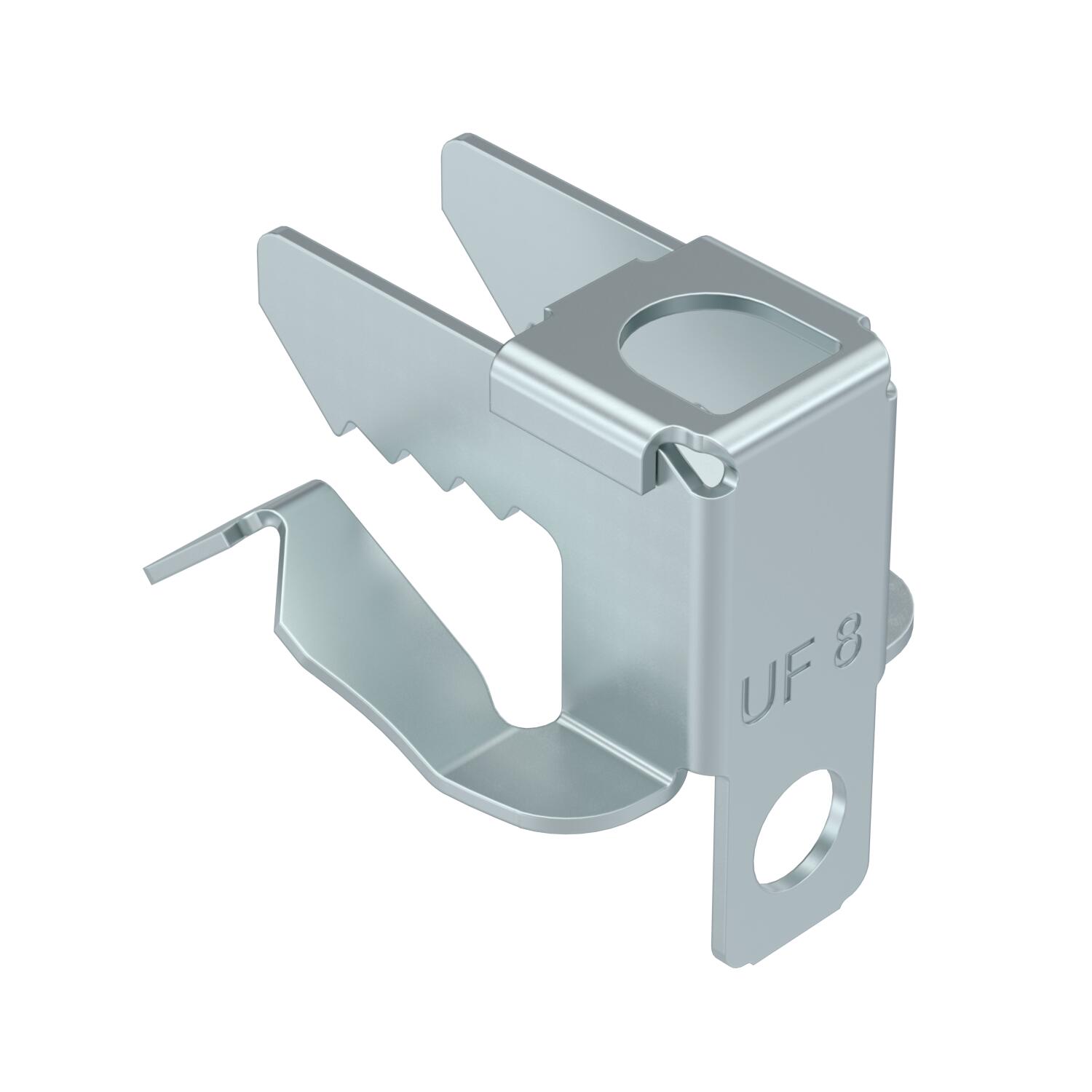

Support clamp, multifunctional

Item no. 1488560 | EAN 4012197370282

Product description
Product description
Multifunctional support clamp for mounting cables, protection pipes and cable sections. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 1,2 kN
Connection type/component Miscellaneous
Dimension 3-8mm
Dimension H 30 mm
Dimension L 29 mm
Fastening type Clamp
Flange thickness F max. 8 mm
Flange thickness F min. 3 mm
Height 30 mm
Hinge, adjustable no
Hinged no
Length 29 mm
Maß W 30 mm
Material Steel
Surface Zinc slat
Width 30 mm
All types

All types

Types Length Width Height Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SK MULTI 3-8 29 mm 30 mm 30 mm 29 mm 3 mm 8 mm 1488560
100 piece
SK MULTI 8-14 33 mm 29 mm 36 mm 33 mm 8 mm 14 mm 1488564
100 piece
SK MULTI 14-20 33 mm 27 mm 43 mm 33 mm 14 mm 20 mm 1488568
50 piece
