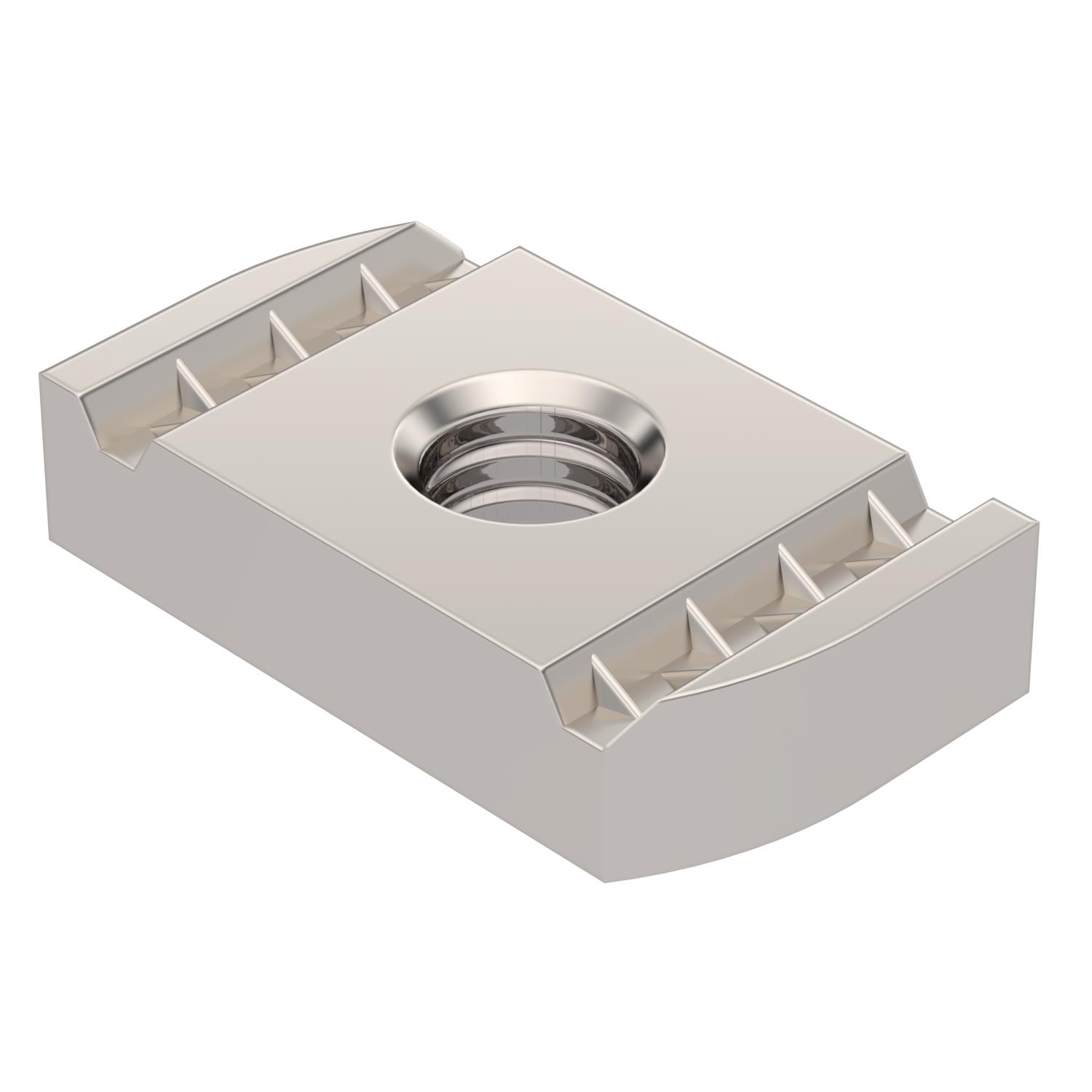

Slide nut A4

Item no. 1147234 | EAN 4012196489916

35 mm
20 mm
Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

Dimension M10
Dimension H 8 mm
Height 8 mm
Length 35 mm
Material Stainless steel
Surface Bright, treated
Thread M10
Thread metric 10
Width 20 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 A4 35 mm 20 mm 6 mm M6 1147226
50 piece
MS41SN M8 A4 35 mm 20 mm 6 mm M8 1147230
50 piece
MS41SN M10 A4 35 mm 20 mm 8 mm M10 1147234
50 piece
MS41SN M12 A4 35 mm 20 mm 9 mm M12 1147238
50 piece
