Slide nut A4

Item no. 1147134 | EAN 4012196489459

35 mm
17 mm
Product description

Product description

Slide nut for use with MS4022 profile rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
Technical data

Technical data

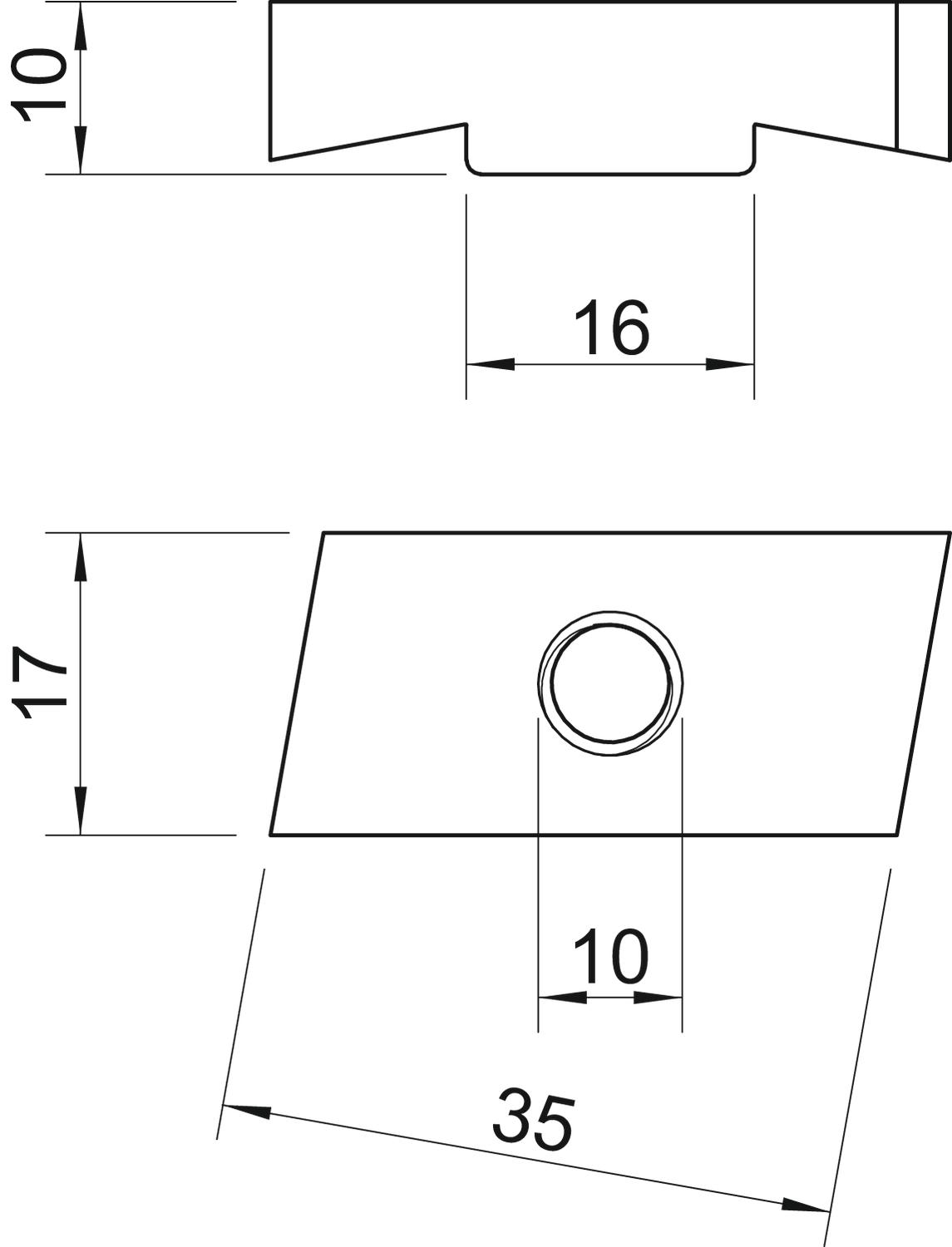

Dimension M10
Dimension B 17 mm
Dimension H 10 mm
Dimension L 30 mm
Height 10 mm
Length 35 mm
Material Stainless steel
Surface Bright, treated
Thread M10
Thread metric 10
Width 17 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS40SN M6 A4 35 mm 17 mm 10 mm M6 1147126
50 piece
MS40SN M8 A4 35 mm 17 mm 10 mm M8 1147130
50 piece
MS40SN M10 A4 35 mm 17 mm 10 mm M10 1147134
50 piece
MS40SN M12 A4 35 mm 17 mm 11.5 mm M12 1147138
50 piece
