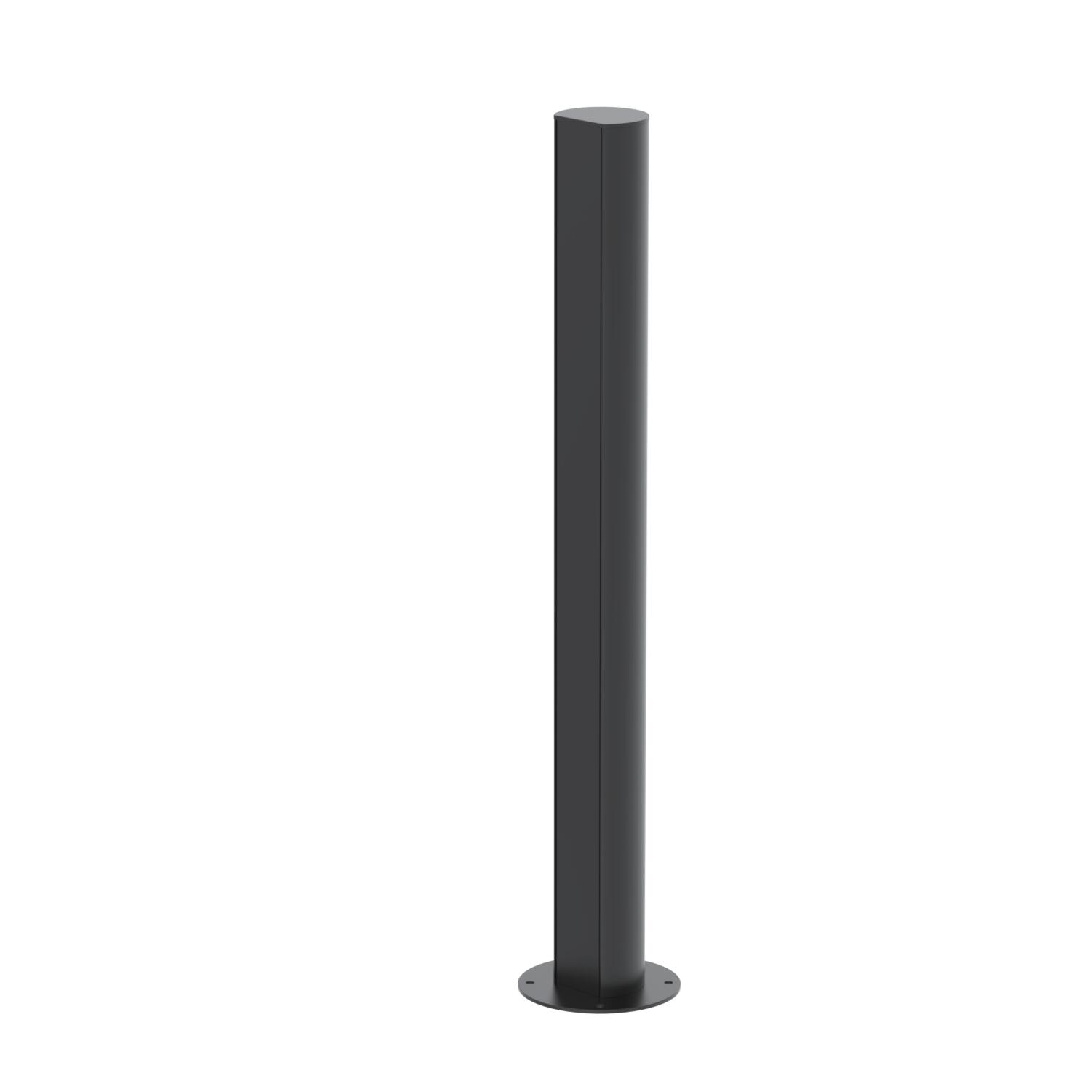

Service pole, type ISSRHSM45
Item no. 6290054 | EAN 4012197441685
- Product description
-
Product descriptionISS aluminium service pole with a 45 mm system opening.
Set consisting of:
1-compartment pole with stand
Total length: 675 mm
1 cover, aluminium
Length: 675 mm
The design of the ISS service pole is based on an extremely slim and round aluminium profile that to the front side shows a smooth cover of the Rapid 45 device installation series. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation compartment is theoretically sufficient for 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).
-
- Technical data
-
Technical data

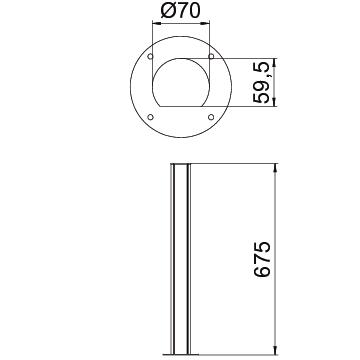

Adjustable no Cable entry Bottom Ceiling mounting no Changes according to location no Colour Jet black; RAL 9005 Continuous profile yes Cover width 45 mm Dimension 675x70x60 Fastening type Stand Floor mounting yes Halogen-free yes Height 59,5 mm Length 675 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, min. 675 mm Pole shape Round Pre-wired no Surface Powder-coated Version for Single-sided Width 70 mm - All types
- Downloads
-
Data sheet ISSRHSM45SW / 6290054 , 0.20MB , pdfEU declaration of conformity ISSRHSM45SW / 6290054 , 0.11MB , pdfUK Declaration of Conformity ISSRHSM45SW / 6290054 , 0.09MB , pdfNo invitation to tender text is available for this product.
