Pressure clip for 16 cables, connectable 16
morepic-1 morepic-2

Pressure clip for 16 cables, connectable

Item no. 2205053 | EAN 4012195710035

2205053 / 2033 AS
16
Product description
Product description

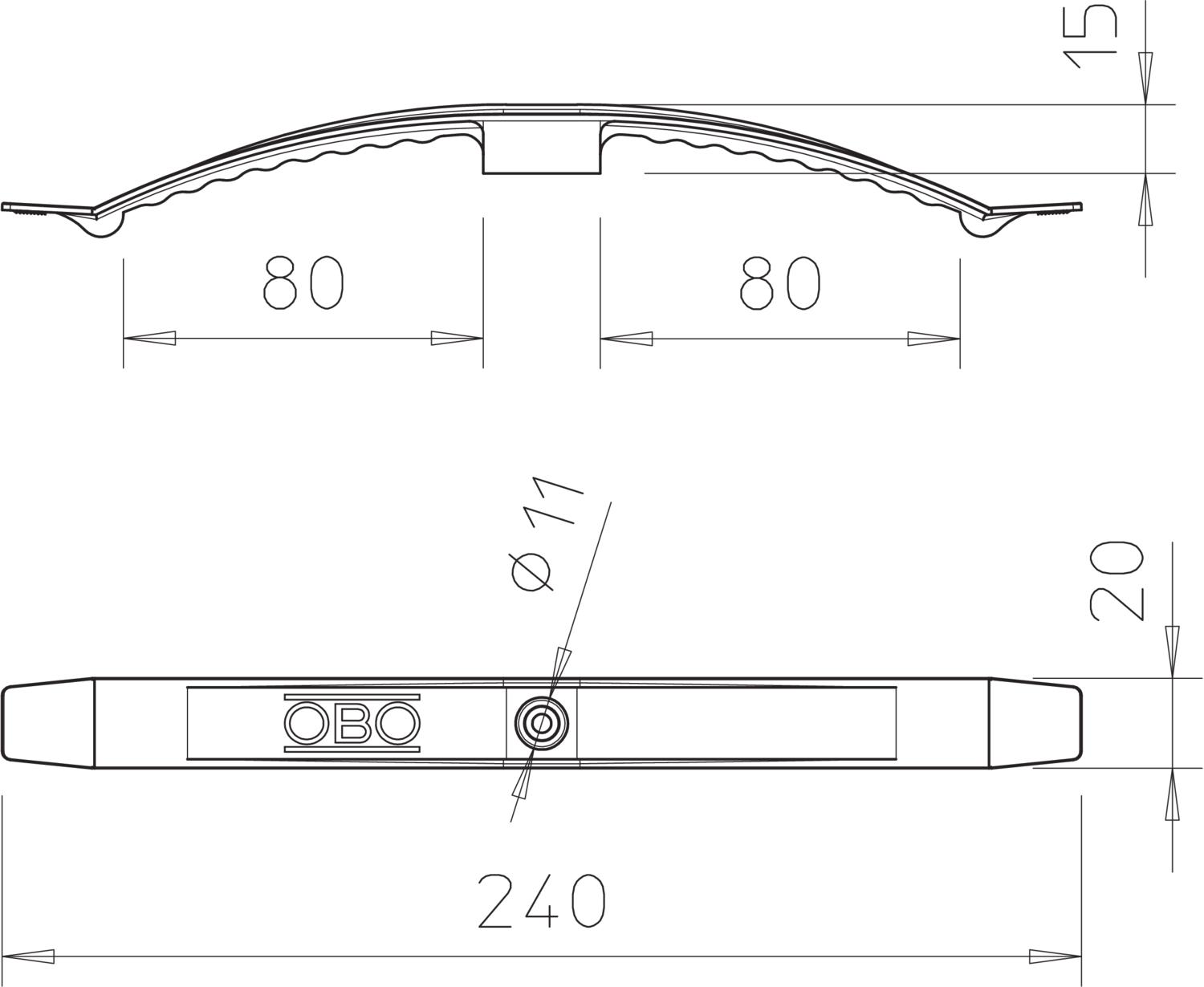

Pressure clip for mounting up to 16 cables NYM 3 x 1.5 mm2, e.g. on partition walls or false ceilings. Suitable for fastening with gas- and battery-operated firing tools of the makes Bosch, Fischer and Spit (external nose diameter Ø 11 mm) Clamping height 9 mm, with spacer 13 mm. Fastening hole Ø 7 mm.
2033 for max. 16 cables NYM 3 x 1.5 mm²

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • gas-/battery-actuated setting tool
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 16
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 AS 16 2205053
25 piece
Downloads

Download

Download

EU declaration of conformity 2033 AS / 2205053 , 0.06MB , pdf
Download
REACH Declaration of conformity 2033 AS / 2205053 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2033 AS / 2205053 , 0.12MB , pdf
Download

2033 AS / 2205053
