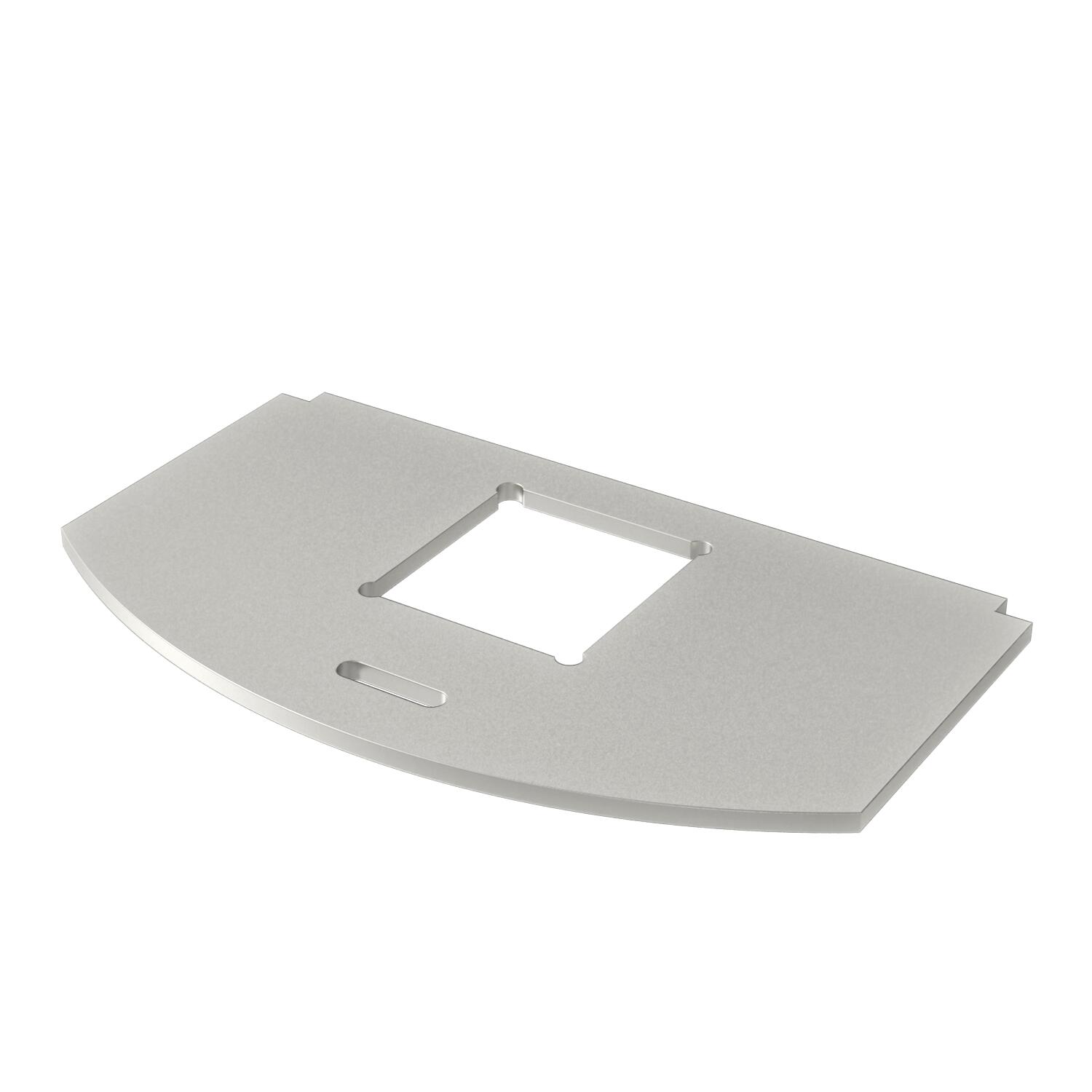

Mounting plate for data technology, type LE
Item no. 7408810 | EAN 4012196460748
- Product description
-
Product descriptionMounting support to accept two data connection modules of the following types: LexCom 125 and 250.

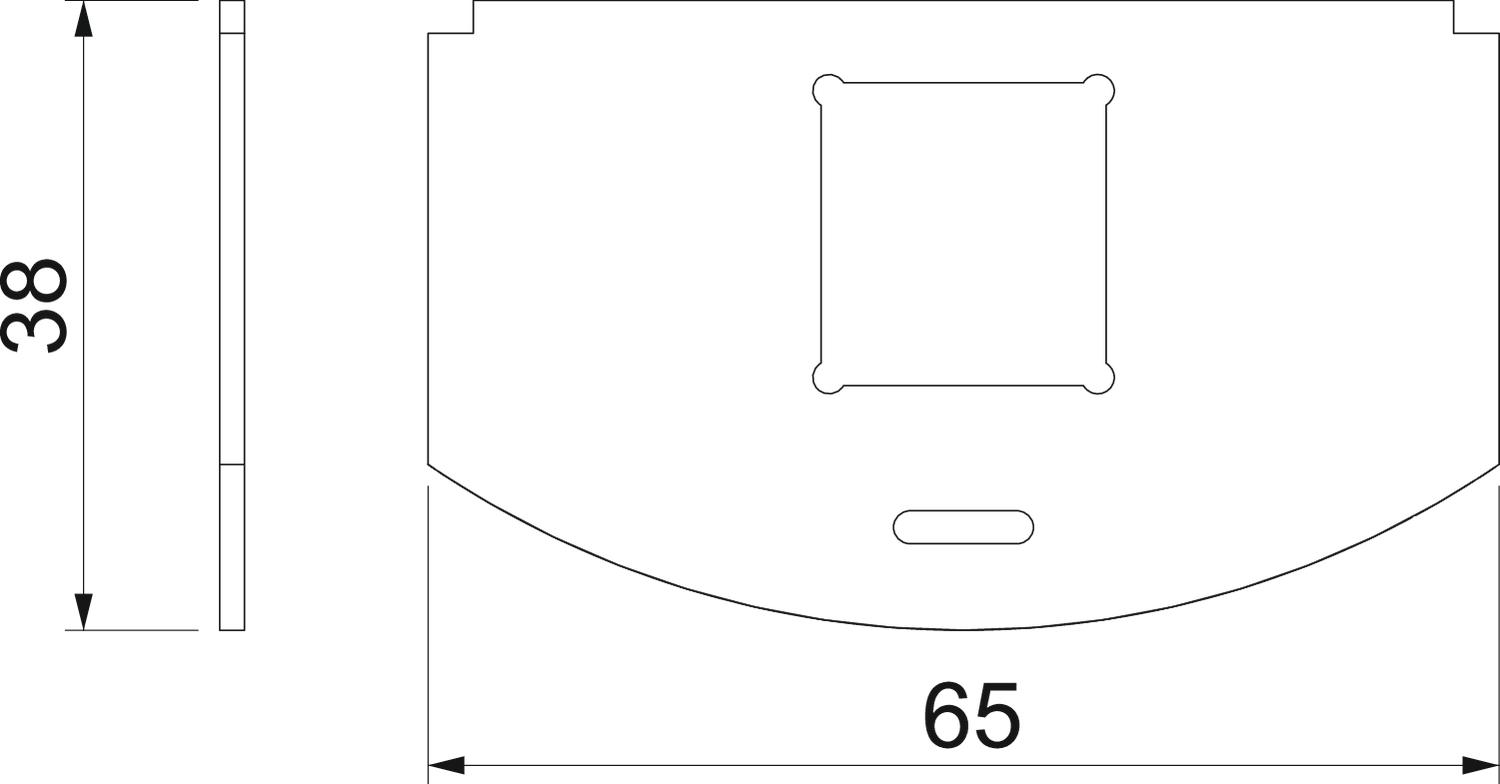

Dimensions of a mounting opening in mm: 18.30 x 17.20.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no Device type Data technology Fastening type Lockable Installation technology Miscellaneous Labelling panel no Length 65 mm Material Stainless steel Number of installable devices 1 Number of single openings 1 suitable for data connection module Type LE Suitable for labelling panel no Width 36 mm - All types
- Downloads
-
Data sheet MP R2 LE / 7408810 , 0.15MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfEU declaration of conformity MP R2 LE / 7408810 , 0.10MB , pdfREACH Declaration of conformity MP R2 LE / 7408810 , 0.12MB , pdfRoHS Declaration of conformity MP R2 LE / 7408810 , 0.13MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdf
