Mounting plate for data technology, type A
Item no. 7408802 | EAN 4012196460670
- Product description
-

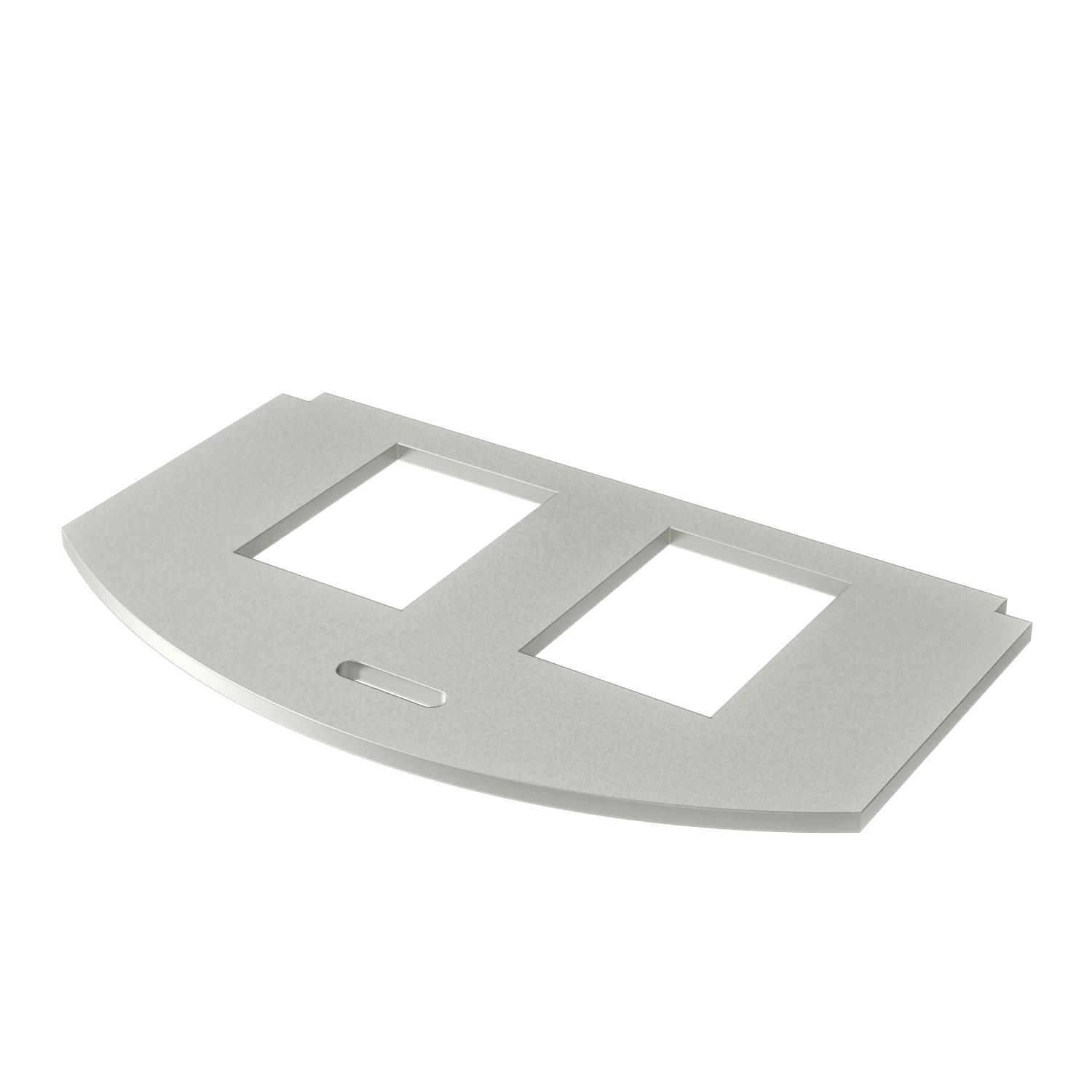

Product descriptionMounting plate to accept two data connection modules of the following types: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

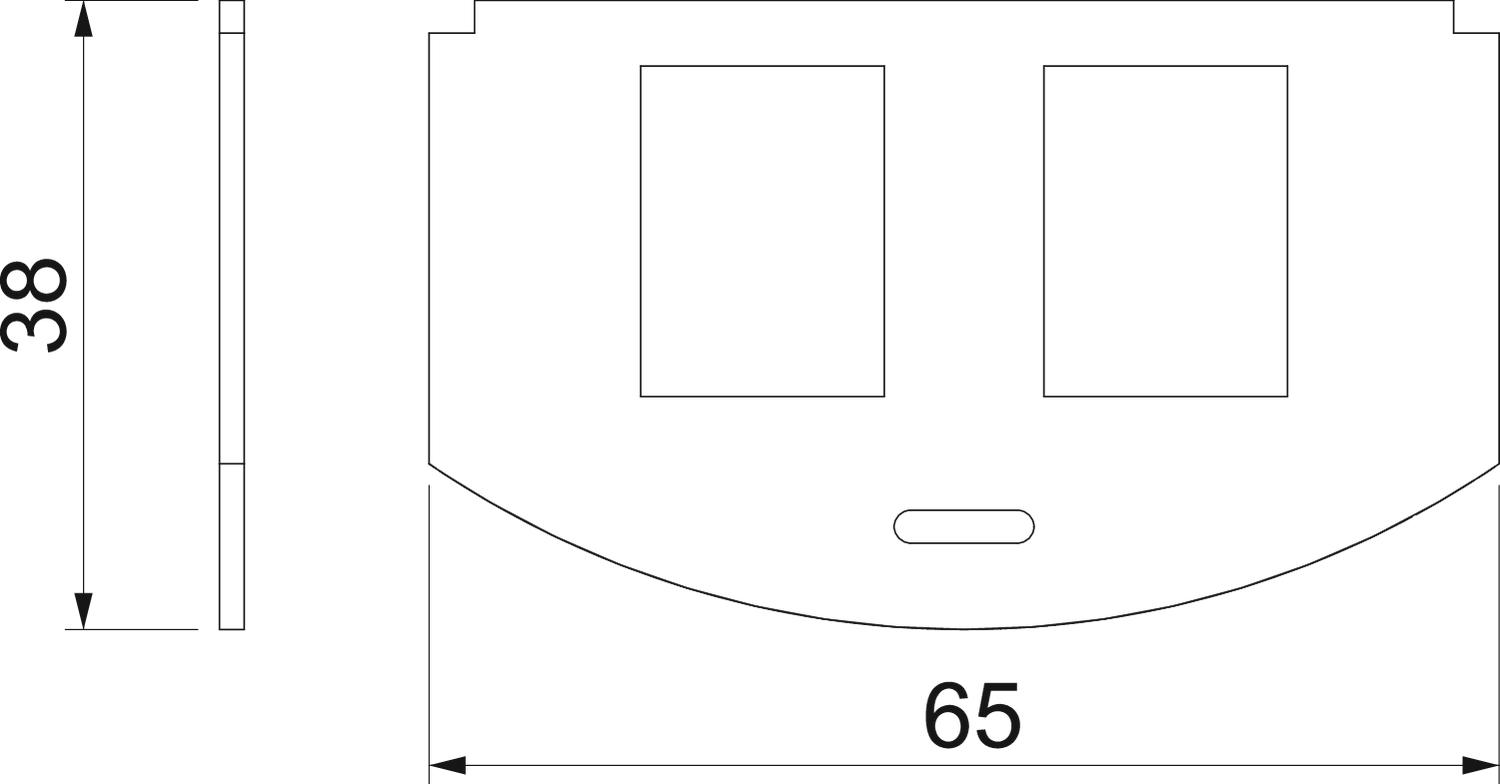

Dimensions of a mounting opening in mm: 20.10 x 14.80.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no Device type Data technology Fastening type Lockable Installation technology Miscellaneous Labelling panel no Length 65 mm Material Stainless steel Number of installable devices 2 Number of single openings 2 suitable for data connection module Type A Suitable for labelling panel no Width 36 mm - All types
- Downloads
-
Data sheet MP R2 2A / 7408802 , 0.15MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfEU declaration of conformity MP R2 2A / 7408802 , 0.10MB , pdfREACH Declaration of conformity MP R2 2A / 7408802 , 0.12MB , pdfRoHS Declaration of conformity MP R2 2A / 7408802 , 0.13MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdf
