Mesh cable tray GR-Magic® 55 FT 3000 | 300 | 55 | 4.8 | 129 | yes

Mesh cable tray GR-Magic® 55 FT

Item no. 6001424 | EAN 4012196815050

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter

Usable cross-section

Maintain electrical functions

Product description

Product description

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

You can find detailed information regarding the UL classification in the respective certification.

Technical data

Technical data

Colour	zinc
Connector version	Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate	4,072 kg CO₂e / 1 Meter

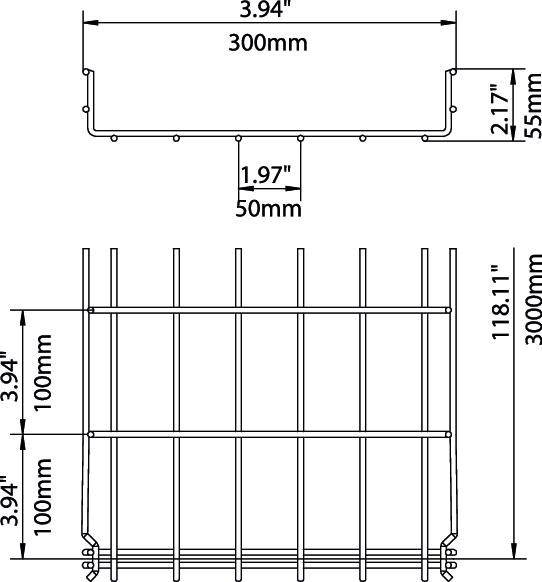

Dimension	55x300x3000
Dimension B	300 mm
Dimension H	58 mm
Fire protection	Maintenance of electrical function of cable-specific support structure
Height	2,17 in
Height	55 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Material	Steel
Profile shape	U-shaped

Rustproof steel, pickled	no
Screwless connector	yes
Support spacing 1.0 m	0,7 kN/m
Support spacing 1.5 m	0,5 kN/m
Support spacing 2.0 m	0,25 kN/m
Support spacing 2.5 m	0,2 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Click fastening
Usable cross-section	129 cm²
Usable cross-section	12900 mm²
Wide-span version	no
Width	11,81 in
Width	300 mm
Wire diameter	4,8 mm

Technical data

Load diagram, GR-Magic mesh cable tray, type GRM 55

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 55 50 FT	3000 mm	50 mm	55 mm	3.9 mm	16 cm²	yes	6001415	m	3 m
GRM 55 100 FT	3000 mm	100 mm	55 mm	3.9 mm	40 cm²	yes	6001416	m	3 m
GRM 55 150 FT	3000 mm	150 mm	55 mm	3.9 mm	63 cm²	yes	6001418	m	3 m
GRM 55 200 FT	3000 mm	200 mm	55 mm	3.9 mm	87 cm²	yes	6001420	m	3 m
GRM 55 300 FT	3000 mm	300 mm	55 mm	4.8 mm	129 cm²	yes	6001424	m	3 m
GRM 55 400 FT	3000 mm	400 mm	55 mm	4.8 mm	175 cm²	yes	6001428	m	3 m
GRM 55 500 FT	3000 mm	500 mm	55 mm	4.8 mm	220 cm²	no	6001432	m	3 m
GRM 55 600 FT	3000 mm	600 mm	55 mm	4.8 mm	265 cm²	no	6001436	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover for mesh cable tray, latchable FT	DGRR 300 FT	6001828	m	3 m
Corner connector FT	GEV 36 FT	6016723	piece	20 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Barrier strip 45 DD	TSG 45 DD	6062321	m	3 m
Exit plate FT	KAB GR FT	6220142	piece	10 piece

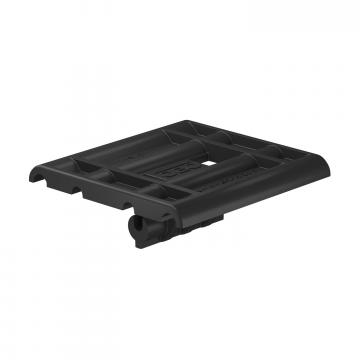

Mesh cable tray adapter for roof conductor holder	165 MBG HGRM	5218886	piece	50 piece
