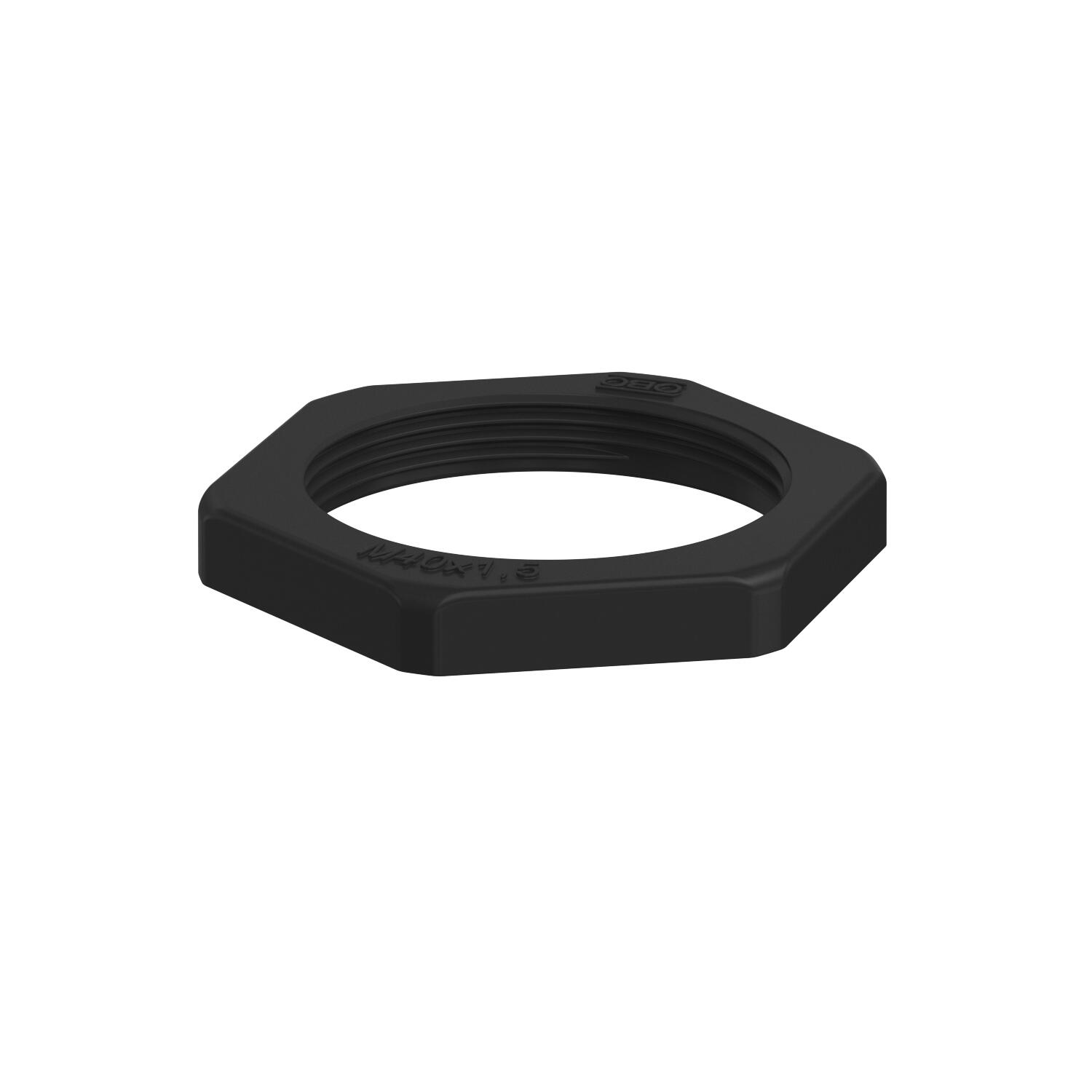

Locknut, metric thread, black
Item no. 2049112 | EAN 4012195095712
- Product description
-
Product descriptionLocknut DIN 46319, with metric thread IEC 423.
-
- Technical data
-
Technical data

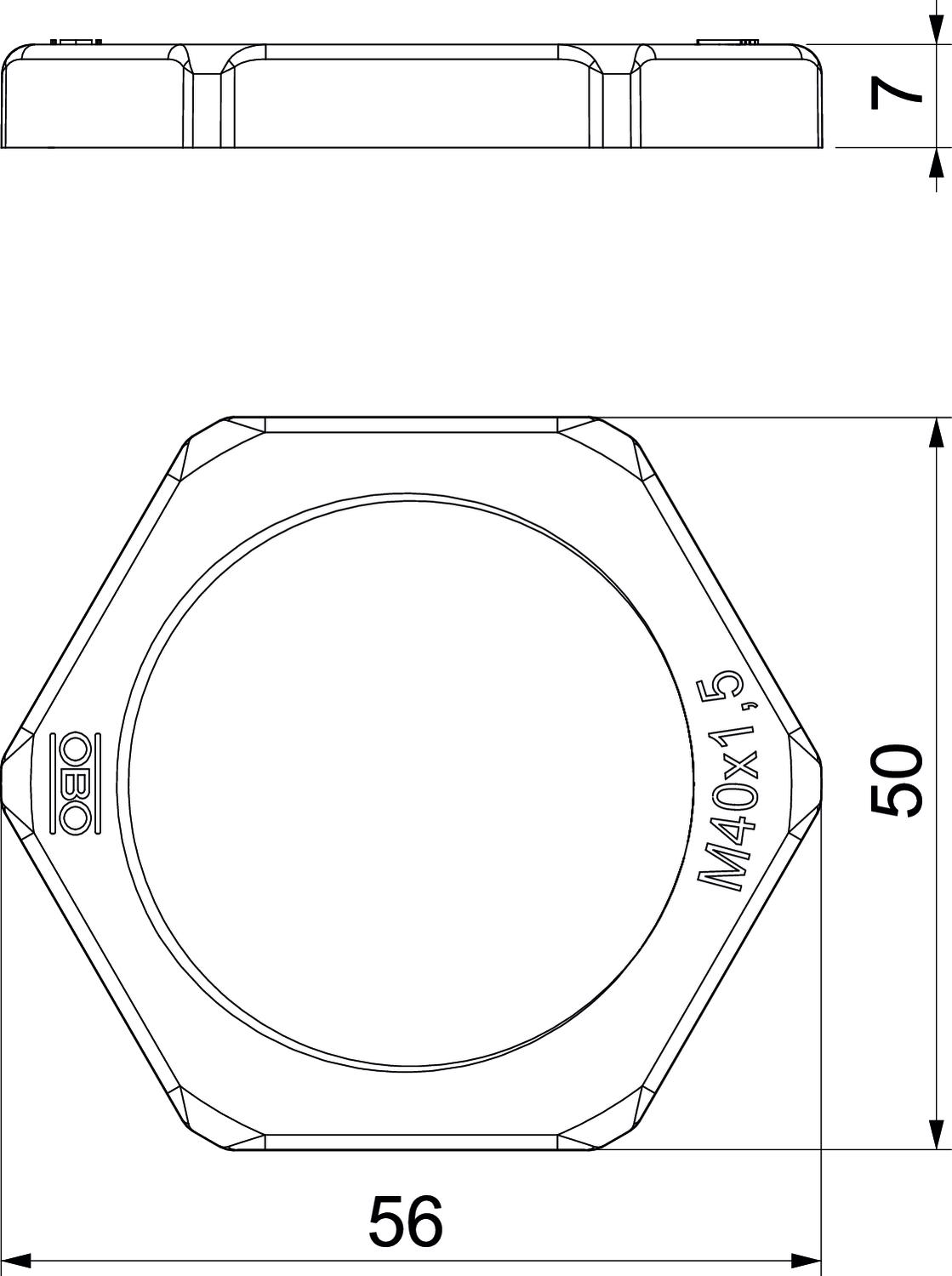

Colour Black Dimension M40 Dimension E 56 mm Dimension L 7 mm Fibre-glass reinforced no Halogen-free yes Impact-resistant no Material Polyamide Nominal thread size metric/PG 40 Thread M40_x_1,5 Thread type Metric WAF 50 - All types
- Downloads
-
Data sheet 116 M40 SW PA / 2049112 , 0.21MB , pdfEU declaration of conformity 116 M40 SW PA / 2049112 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 116 M40 SW PA / 2049112 , 0.09MB , pdfREACH Declaration of conformity 116 M40 SW PA / 2049112 , 0.12MB , pdfRoHS Declaration of conformity 116 M40 SW PA / 2049112 , 0.12MB , pdfMounting instructions Mounting instructions, universal systems , 2.07MB , pdfMounting instructions Mounting instructions, V-TEC VM.. SGR; V-TEC VM.. LGR; V-TEC VM.. SW , 0.08MB , pdf
