Lock washer

Item no. 3405087 | EAN 4012195302353

Product description

Product description

Lock washer M8
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

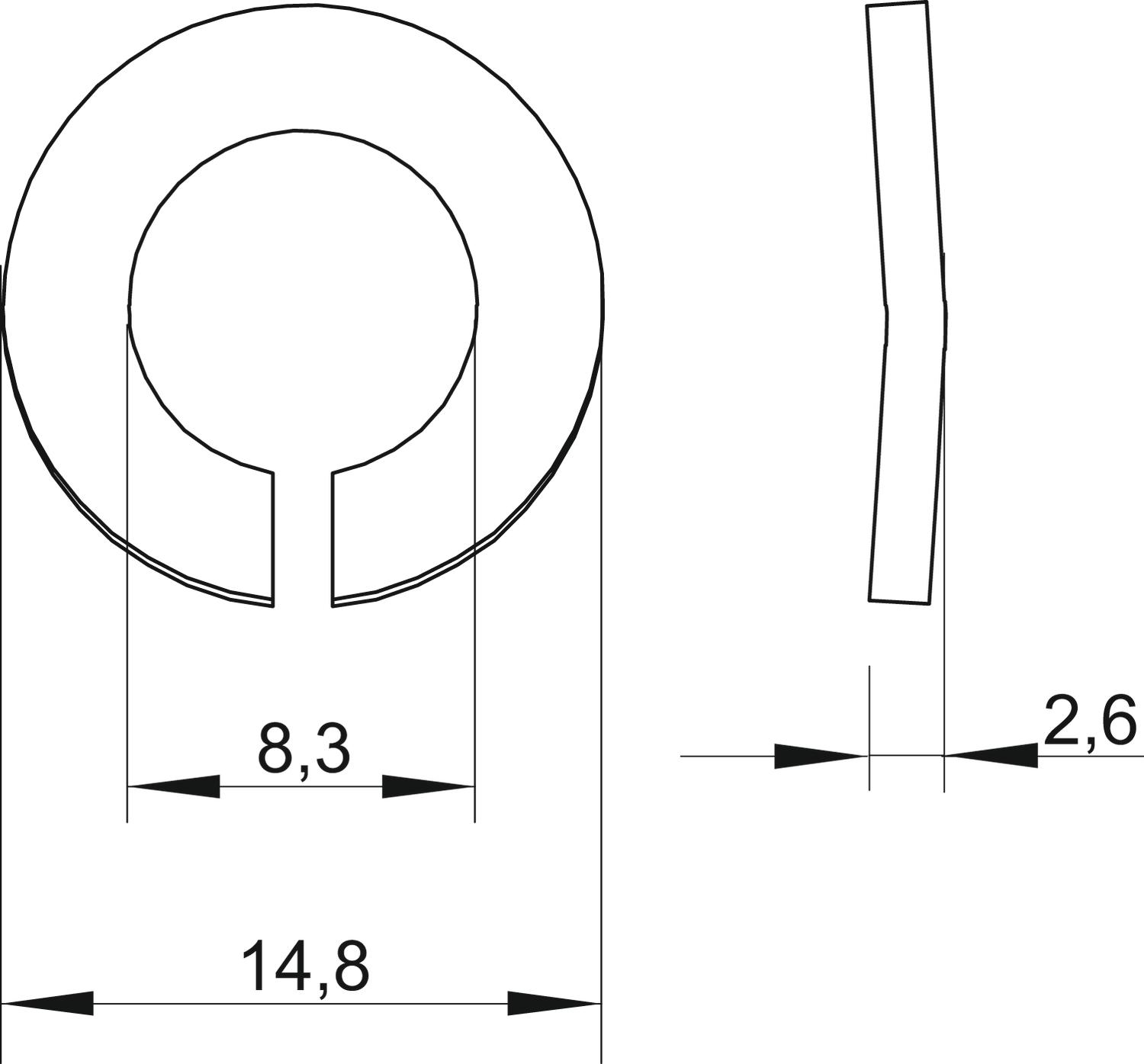

Diameter 14,8 mm
Dimension M8
Dimension d 8,3 mm
Dimension d max. 14,8 mm
Dimension d min. 14,8 mm
Dimension h 2,6 mm
External diameter 14,8 mm
Height 2,6 mm
Inner diameter 0,33 mm
Lock washer version Ribbed
Material Steel
Plate thickness 0,1 in
Surface Electrogalvanized
Thickness 2,6 mm
Thread M8
All types

All types

Types Dimension d min. Dimension h Thread Item no. Quantity SSU
LWS M6 G 11.8 mm 2.1 mm M6 3405060
100 piece
LWS M8 G 14.8 mm 2.6 mm M8 3405087
100 piece
LWS M10 G 18.1 mm 3 mm M10 3405109
100 piece
LWS M12 G 21.1 mm 3.5 mm M12 3405125
100 piece
