Large washer G

Item no. 3403092 | EAN 4012195868156

Product description

Product description

Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

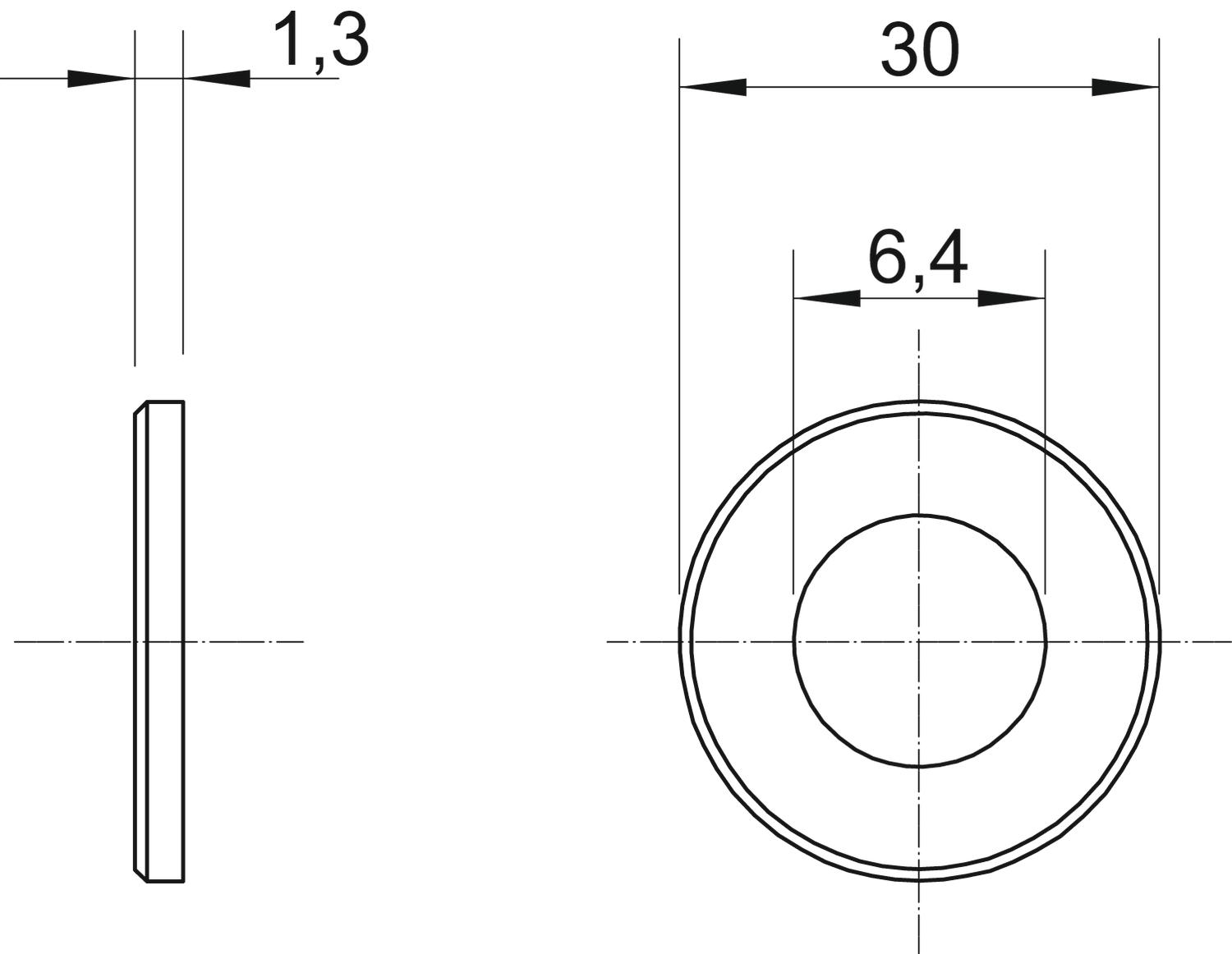

Dimension M6,Ø30mm
Dimension d 6,4 mm
Dimension d max. 30 mm
Dimension d min. 30 mm
Dimension h 1,3 mm
Material Steel
Material thickness 1,3 mm
Plate thickness 0,05 in
Surface Electrogalvanized
Thread M6
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M4 G15 G 15 mm 4.3 mm 1.2 mm M4 3403025
100 piece
WS M5 G20 G 20 mm 5.3 mm 1.2 mm M5 3403041
100 piece
WS M6 G20 G 20 mm 6.4 mm 1.25 mm M6 3403076
100 piece
WS M6 G25 G 25 mm 6.4 mm 1.2 mm M6 3403084
100 piece
WS M6 G30 G 30 mm 6.4 mm 1.3 mm M6 3403092
100 piece
WS M8 G20 G 20 mm 8.4 mm 1.25 mm M8 3403122
100 piece
WS M8 G25 G 25 mm 8.4 mm 1.2 mm M8 3403130
100 piece
WS M10 G30 G 30 mm 10.5 mm 1.5 mm M10 3403165
100 piece
