Large washer G 20 | 5.3 | 1.2 | M5

Large washer G

Item no. 3403041 | EAN 4012195867975

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Back to overview

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0073 kg CO₂e / 1 Piece
Dimension	M5,Ø20mm
Dimension d	5,3 mm
Dimension d max.	20 mm
Dimension d min.	20 mm
Dimension h	1,2 mm
External diameter	20 mm
Faceted	no

Hardened	no
Inner diameter	5,3 mm
Material	Steel
Material thickness	1,2 mm
Plate thickness	0,05 in
Surface	Electrogalvanized
Thread	M5

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 G15 G	15 mm	4.3 mm	1.2 mm	M4	3403025	piece	100 piece
WS M5 G20 G	20 mm	5.3 mm	1.2 mm	M5	3403041	piece	100 piece
WS M6 G20 G	20 mm	6.4 mm	1.25 mm	M6	3403076	piece	100 piece
WS M6 G25 G	25 mm	6.4 mm	1.2 mm	M6	3403084	piece	100 piece
WS M6 G30 G	30 mm	6.4 mm	1.3 mm	M6	3403092	piece	100 piece
WS M8 G20 G	20 mm	8.4 mm	1.25 mm	M8	3403122	piece	100 piece
WS M8 G25 G	25 mm	8.4 mm	1.2 mm	M8	3403130	piece	100 piece
WS M10 G30 G	30 mm	10.5 mm	1.5 mm	M10	3403165	piece	100 piece

Downloads

Data sheet WS M5 G20 G / 3403041 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity WS M5 G20 G / 3403041 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M5 G20 G / 3403041 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M5 G20 G / 3403041 , 0.13MB , pdf

Download

Product graphic WS M5 G20 G / 3403041, 16.95 kB, jpg

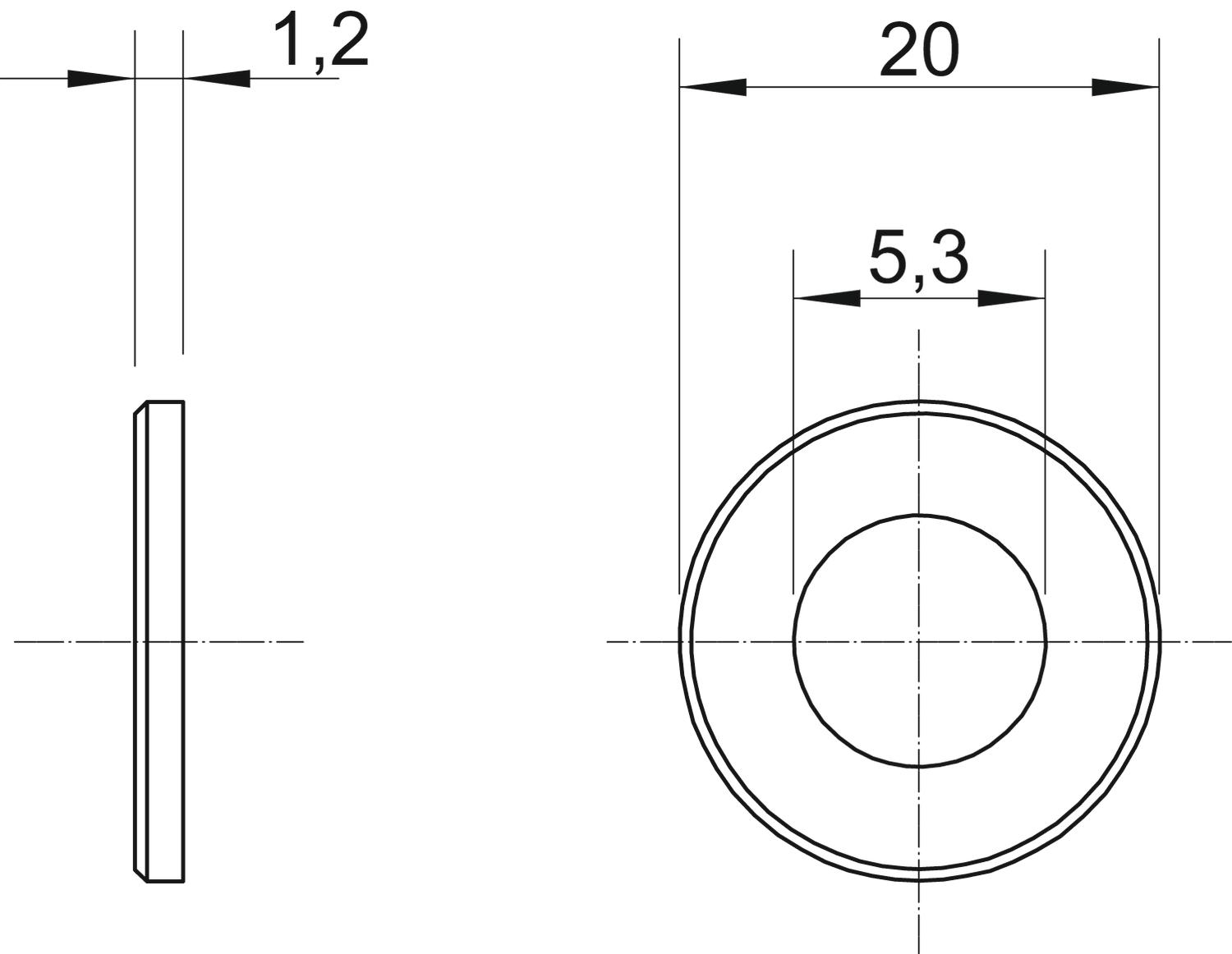

Scale drawing WS M5 G20 G / 3403041, 61.95 kB, jpg

WS M5 G20 G / 3403041
