Large washer, A2

Item no. 3403175 | EAN 4012195946298

1.5 mm
Product description

Product description

Washer of particularly large outer diameter. In the case of connections on the MS 41 mounting rail, we recommend the external diameter of 40 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

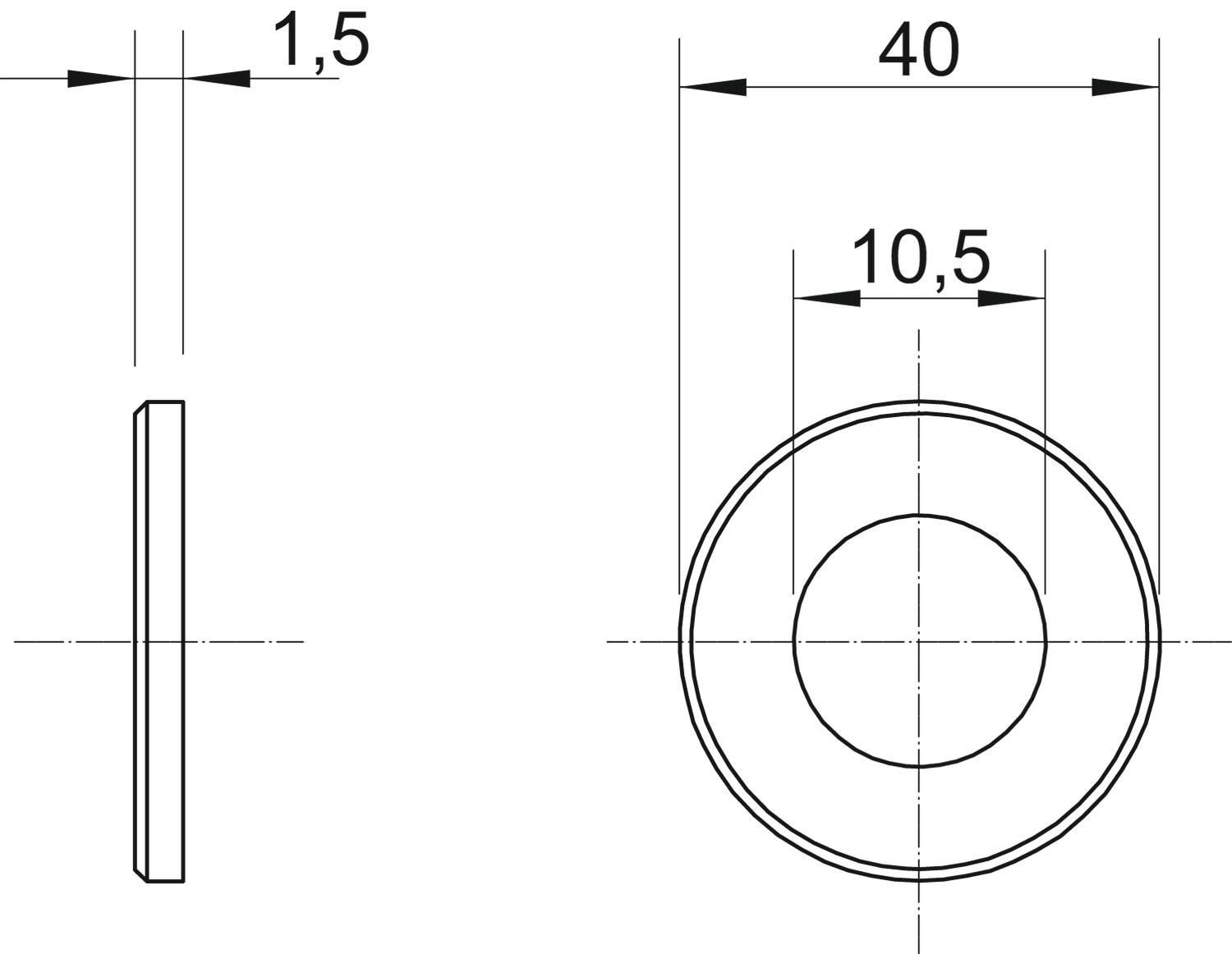

Dimension M10,Ø40mm
Dimension d 10,5 mm
Dimension d max. 40 mm
Dimension d min. 40 mm
Dimension h 1,5 mm
Halogen-free no
Material Stainless steel
Material thickness 1,5 mm
Plate thickness 0,06 in
Surface Bright, treated
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M8 D20 A2 20 mm 8.4 mm 1.5 mm M8 3403125
100 piece
WS M8 D25 A2 25 mm 8.4 mm 1.5 mm M8 3403135
100 piece
WS M8 D40 A2 40 mm 8.5 mm 1.5 mm M8 3403145
100 piece
WS M10 D30 A2 30 mm 10.5 mm 1.5 mm M10 3403155
100 piece
WS M10 D40 A2 40 mm 10.5 mm 1.5 mm M10 3403175
100 piece
