isCon® conductor, Basic black 20 | 0.45 | 100 | 35

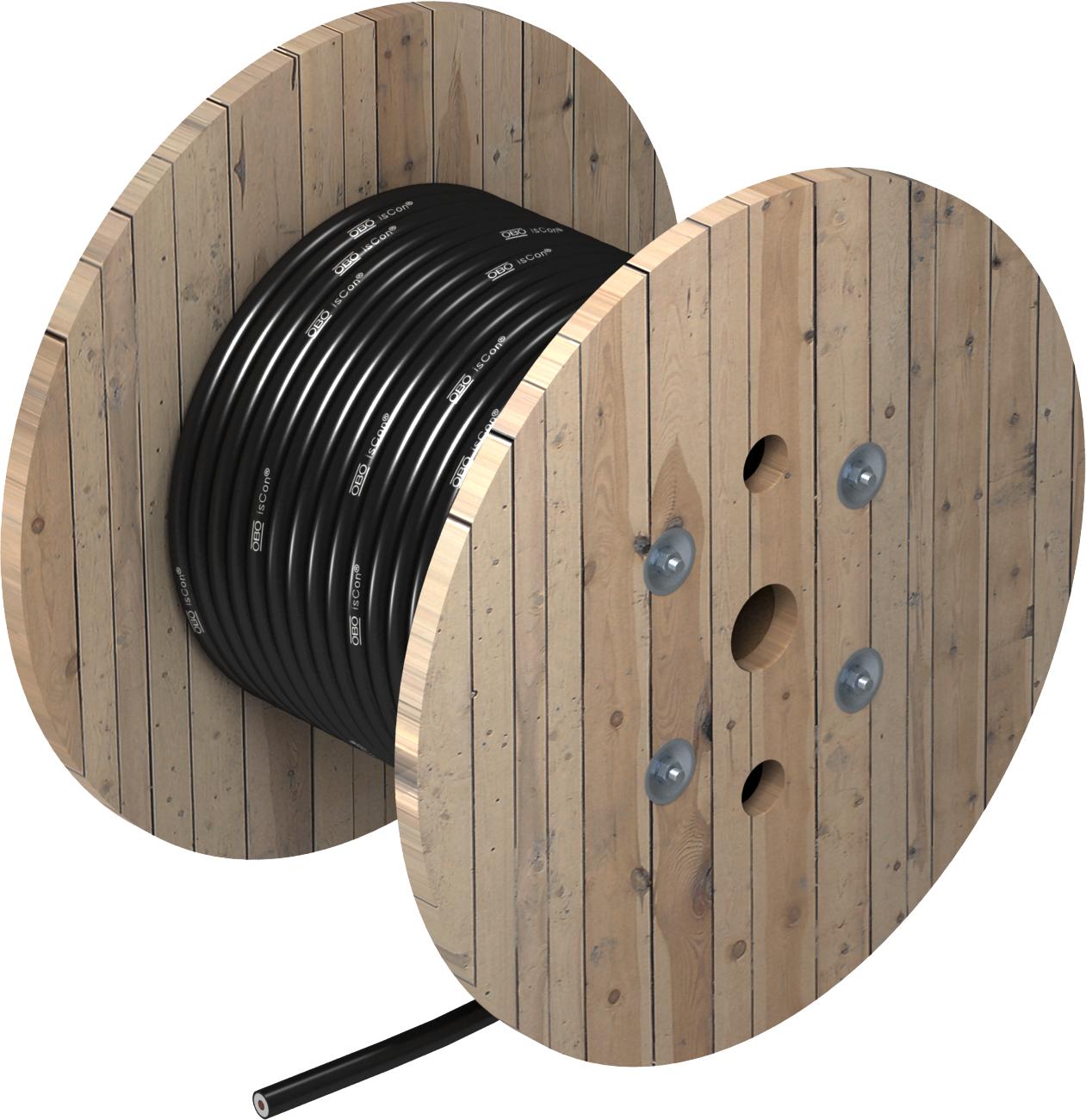

isCon® conductor, Basic black

Item no. 5408014 | EAN 4012196591664

Item no. / Types

Diameter

equivalent separating distance s(e)/m

Nomal ring (approx. m)

Cross-section	35 mm²

Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Basic conductor.

• Highly voltage-resistant, insulated conductor
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.45 m (air) and se ≤ 0.90 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m

Technical data

Technical data

Colour	Black
Cross-section	35 mm²
Diameter	20 mm
Dimension	Ø20mm

equivalent separating distance s(e)/m	0,45
Length tolerance ±	5 %
Nomal ring (approx. m)	100

All types

All types

Types	Diameter	equivalent separating distance s(e)/m	Nomal ring (approx. m)	Cross-section	Item no.	Quantity	SSU
isCon Pro+ 75 SW	23 mm	0.75	25	35 mm²	5408002	m	25 m
isCon Pro+ 75 SW	23 mm	0.75	100	35 mm²	5408004	m	100 m
isCon Pro+ 75 SW	23 mm	0.75	250	35 mm²	5408006	m	250 m
isCon BA 45 SW	20 mm	0.45	100	35 mm²	5408014	m	100 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Spacer clip 733 A2	ASL 733 20 A2	1362984	piece	25 piece
Connection element for installation in the insulated interception rod isFang IN	isCon IN con 2	5408019	piece	1 piece
isCon® connection element	isCon con 2	5408021	piece	2 piece
Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod	isCon IN PAE 2	5408032	piece	1 piece
Potential connection	isCon PAE	5408036	piece	2 piece
