- Product description
-

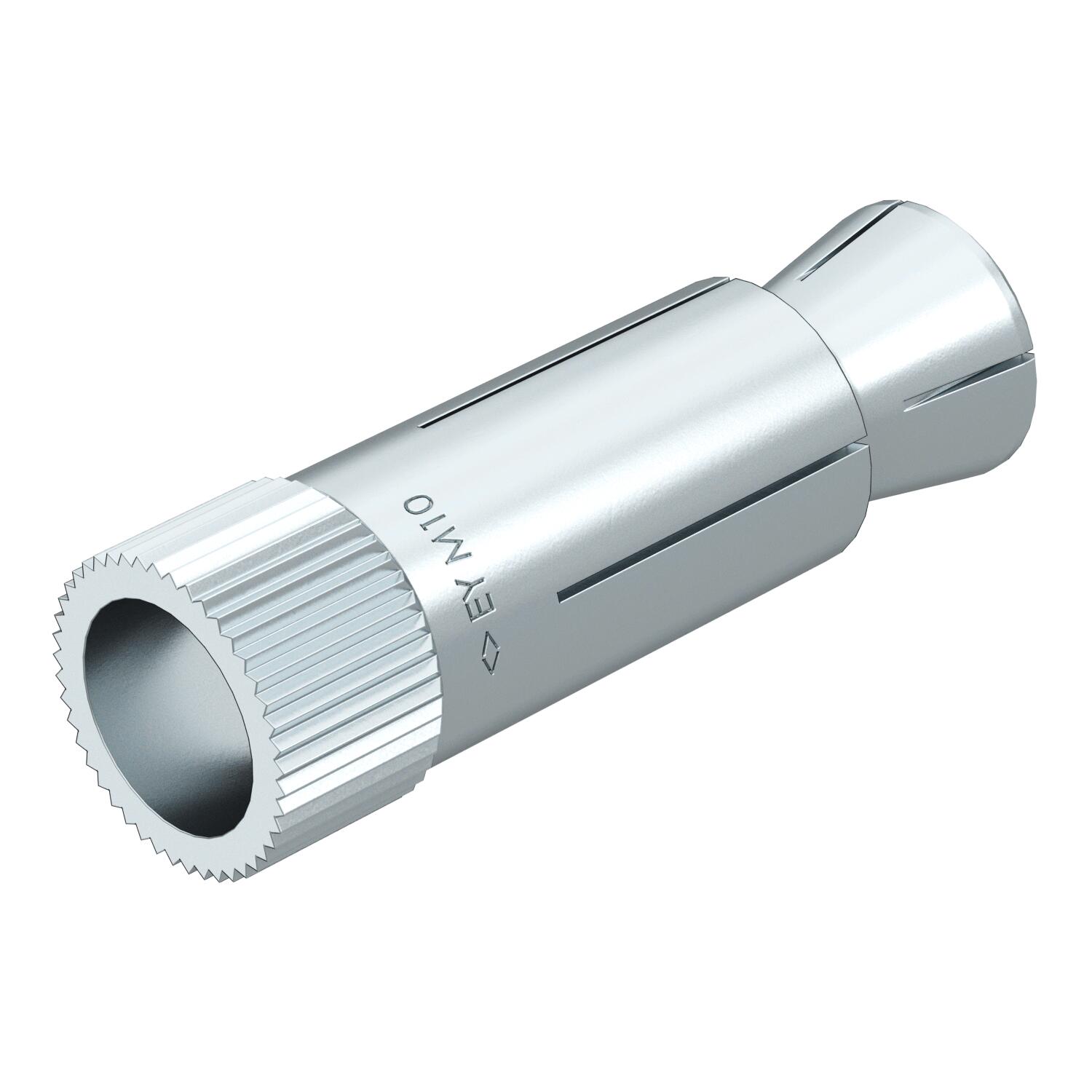

Product descriptionHollow core anchor "Easy" for mounting in prestressed hollow concrete slabs. When the screw or the nut is tightened, the cone is released from the anchor sleeve and pulled into it. This makes the anchor expand in the hollow space, thereby creating form lock. The hollow core anchor can also be used when the expansion area is not located in the cavity.
The fastening of the component can be done with standard screws and threaded rods.
- Technical data
-
Technical data
Colour zinc Dimension M6 Dimension L 40 mm Drill hole depth 50 mm Drill hole diameter, min. 10 mm Length 40 mm Material Steel Surface Electrogalvanized Thread M6 Thread metric 6 With bolts no With thread yes - All types
- Downloads
-
Data sheet Easy M6 / 3498768 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfApproval certificate General construction approval, MKT cavity ceiling tie Easy , 0.09MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, hollow core anchor Easy , 0.98MB , pdf
