Hexagonal nut DIN 934 V2A

Item no. 3397106 | EAN 4012195297796

Product description

Product description

Hexagonal nut to DIN 934 with metric thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

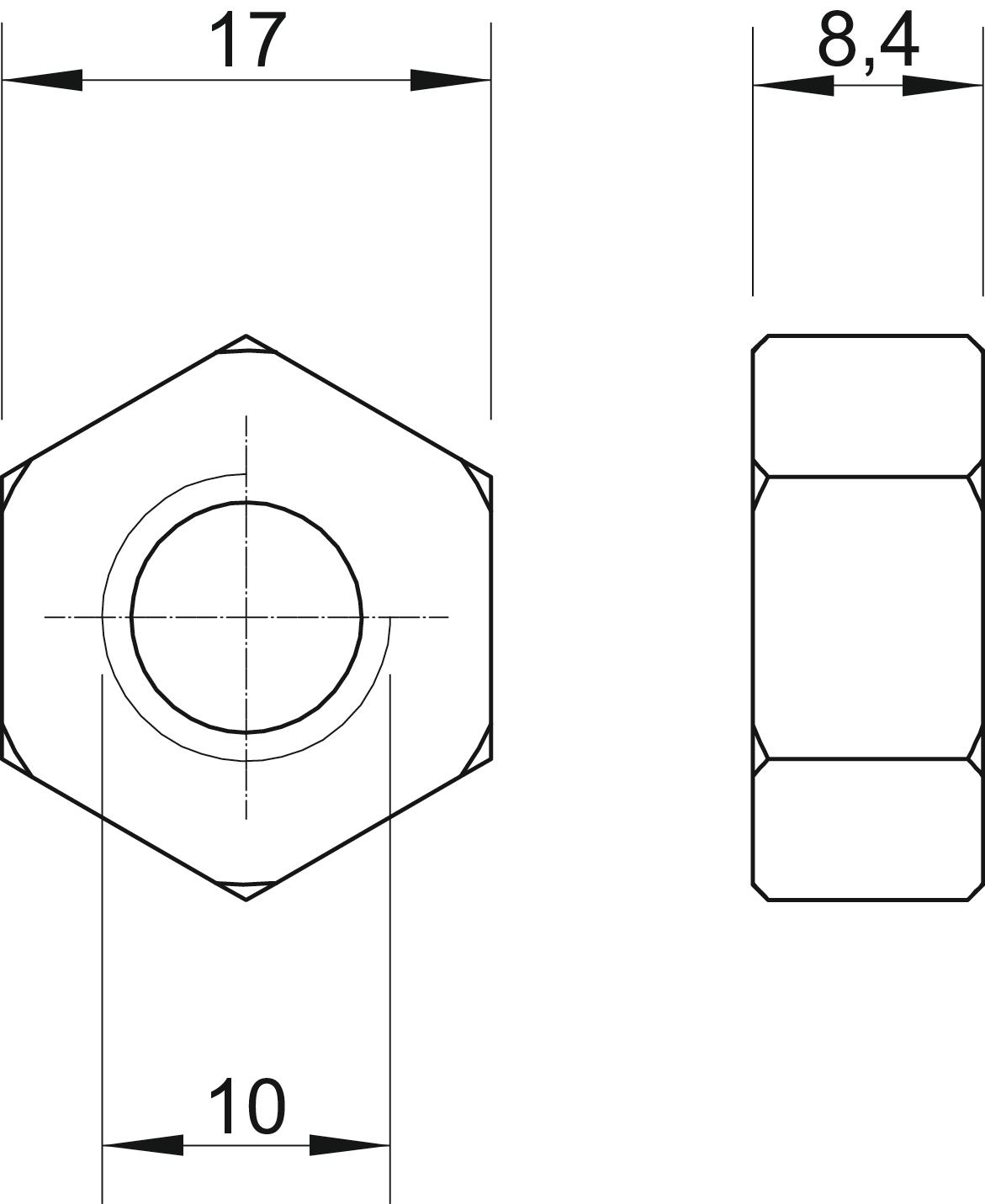

Dimension M10
Dimension d 10 mm
Dimension h 8,4 mm
Halogen-free yes
Left thread no
Material Stainless steel
Nut version Nut
Screw system nut Hexagon head
Self-locking no
Surface Bright, treated
Thread M10
Thread metric 10
Thread type Metric
WAF 17
With flange no
All types

All types

Types Dimension d Dimension h WAF Item no. Quantity SSU
HN M6 A2 6 mm 5.2 mm 10 3397068
100 piece
HN M8 A2 8 mm 6.8 mm 13 3397084
100 piece
HN M10 A2 10 mm 8.4 mm 17 3397106
100 piece
HN M12 A2 12 mm 10.8 mm 19 3397114
100 piece
