Hammer-head bolt A4 34.5 | 20 | 6 | M 6 x 30

morepic-1

morepic-2

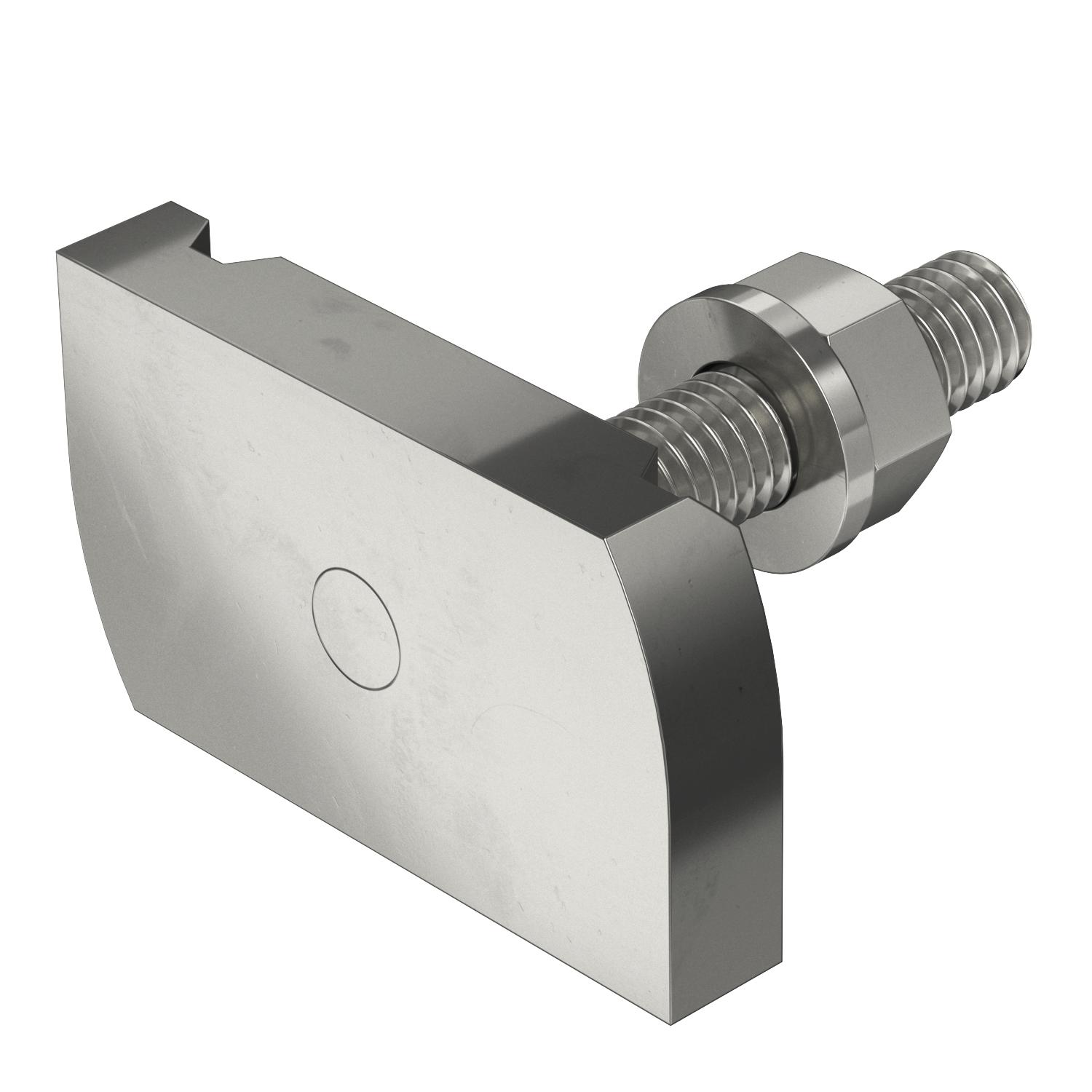

Hammer-head bolt A4

Item no. 1148406 | EAN 4012196490295

Item no. / Types	1148406 / MS41HB M6x30 A4

Length	34.5 mm

Width	20 mm

Height	6 mm

Thread	M 6 x 30

Product description

Product description

Hammer-head bolt for use with MS4121 and MS4141 profile rails

Technical data

Technical data

Dimension	M6x30mm
Dimension H	6 mm
Dimension L	30 mm
Height	6 mm
Length	34,5 mm
Material	Stainless steel

Suitable for mounting rail	yes
Surface	Bright, treated
Thread	M 6 x 30
Torque	3,4 Nm
Washer Ø	12 mm
Width	20 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41HB M6x30 A4	34.5 mm	20 mm	6 mm	M 6 x 30	1148406	piece	50 piece

Downloads

Data sheet MS41HB M6x30 A4 / 1148406 , 0.18MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS41HB M6x30 A4 / 1148406 , 0.04MB , pdf

Download

Product graphic MS41HB M6x30 A4 / 1148406, 89.94 kB, jpg

Scale drawing MS41HB M6x30 A4 / 1148406, 47.11 kB, jpg

MS41HB M6x30 A4 / 1148406
