Galvanised steel flat conductor for earth 30 | 3.5

Galvanised steel flat conductor for earth

Item no. 5019345 | EAN 4012195680475

Item no. / Types

Width

Height

Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding

Technical data

Technical data

Cross-section	105 mm²
Dimension	30x3,5mm
Dimension B	30 mm
Dimension H	3,5 mm
Height	3,5 mm
Length tolerance ±	5 %

Material	Steel
Nomal ring (approx. m)	30
Normal ring (ca. kg)	25
Surface	Hot-dip galvanised
Width	30 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
5052 DIN 20X2.5	20 mm	2.5 mm	5019340	m	122 m
5052 DIN 25X3	25 mm	3 mm	5019342	m	84 m
5052 DIN 30X3.5	30 mm	3.5 mm	5019345	m	30 m
5052 DIN 40X4	40 mm	4 mm	5019355	m	40 m
5052 DIN 40X5	40 mm	5 mm	5019360	m	30 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cross-connector with intermediate plate for Rd 8−10 mm FT	252 8-10 FT	5312310	piece	25 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT	252 8-10X16 FT	5312345	piece	25 piece
Cross-connector Rd 8−10 mm	253 8X8	5312604	piece	25 piece
Cross-connector for round and flat conductors FT	252 8-10XFL30 FT	5312655	piece	25 piece
Cross-connector for Rd 8−10 x Rd 16	253 10X16	5312809	piece	25 piece
Cross-connector for flat conductor, with intermediate plate	255 30	5314518	piece	20 piece
Cross-connector for flat conductor	255 A-FL30 FT	5314534	piece	20 piece

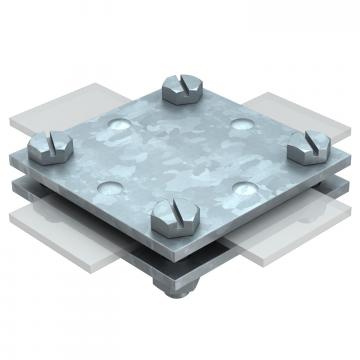

DIN cross-connector for flat conductor, with intermediate plate	256 DIN 30 FT	5314615	piece	10 piece
DIN cross-connector for flat conductor	256 A-DIN 30 FT	5314658	piece	10 piece
Fixed earthing terminal with axis and double thread FT	205 DG L180 FT	5420024	piece	10 piece
Sealing sleeve for flat conductors	DW FL30x3,5	2360043	piece	1 piece
Spacer	1811	5014018	piece	25 piece
Spacer	1811 L	5014026	piece	25 piece

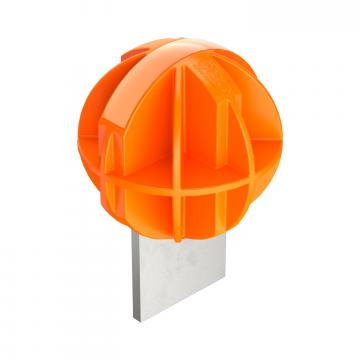

Protective cap for connection lugs, reflective	ProtectionBall	5018014	piece	25 piece
