G mesh cable tray Magic® 50 FT
Item no. 6005520 | EAN 4012195686392
- Product description
-
Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data

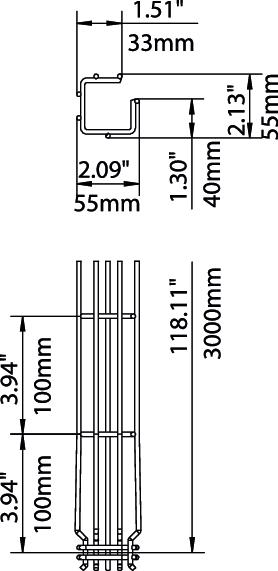

Colour zinc Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 1,489 kg CO₂e / 1 Meter Dimension 50x50x3000 Dimension A 38 mm Dimension B 55 mm Dimension C 33 mm Dimension H 55 mm Height 1,97 in Height 50 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Surface Hot-dip galvanised Type of connector, cable support system Click fastening Usable cross-section 17 cm² Usable cross-section 1700 mm² Wide-span version no Width 1,97 in Width 50 mm Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
