Fastening clip 822, heavy duty, A4
Item no. 1013877 | EAN 4012195911814
- Product description
-
Product descriptionFastening clip, single-lobe, 16 mm
-
- Technical data
-
Technical data

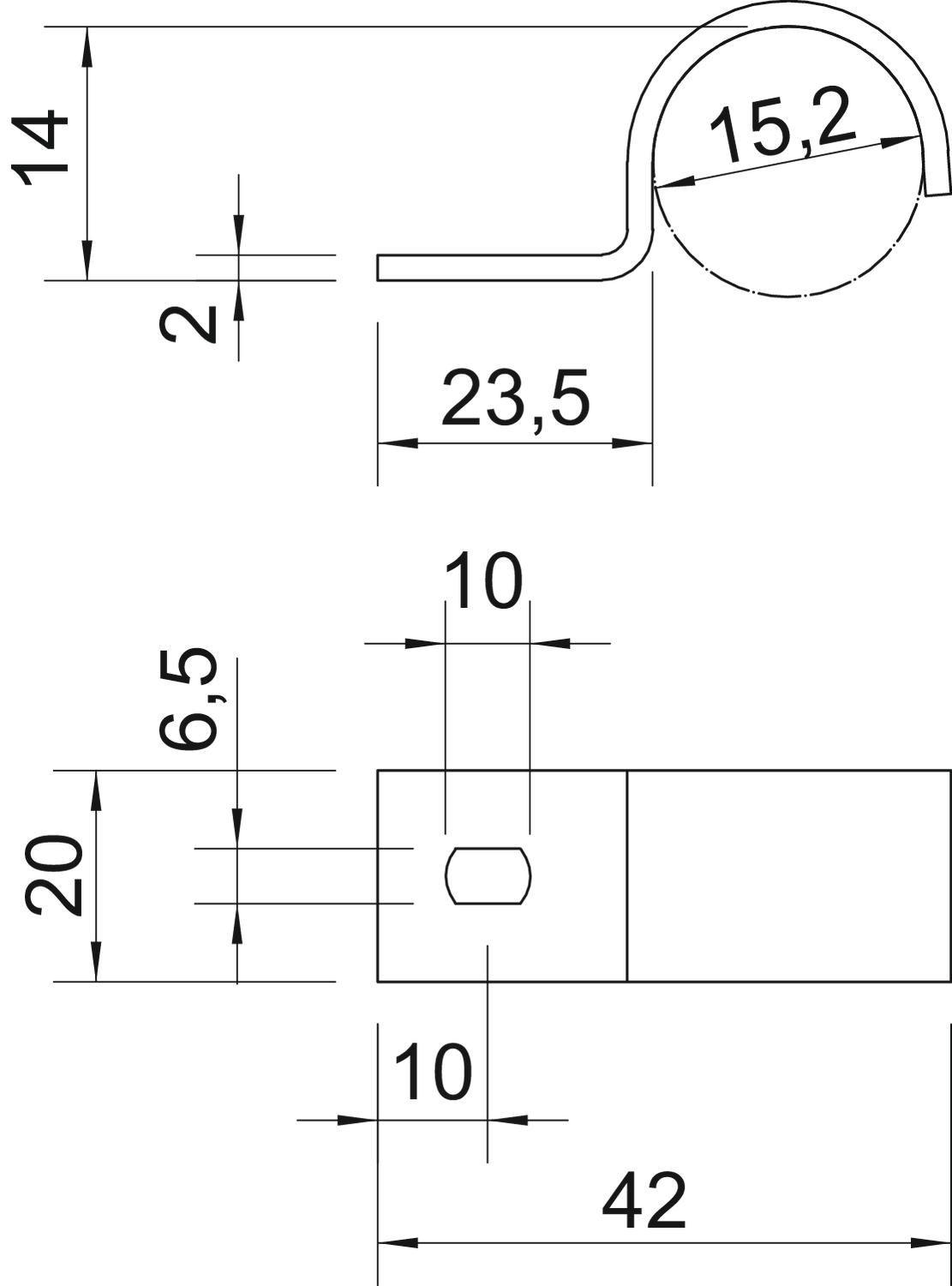

CO₂ Footprint (GWP) Cradle-to-Gate 0,0889 kg CO₂e / 1 Piece Dimension 16mm Dimension A 10 mm Dimension b 20 mm Dimension D 15,2 mm Dimension H 14 mm Dimension L 23,5 mm Dimension L1 42 mm Dimension t 2 mm Distance to the wall no Fastening type Screw hole For diameter 15,2 Halogen-free yes Height 14 mm Hole size 6,5 x 10 mm Length 42 mm Material Stainless steel Material thickness 2 mm Nominal diameter 15,2 mm Number of cables/pipes 1 Plastic-covered no Size M16 Suitable in fire protection area no Surface Bright, treated UV-resistant yes Version for Single-lobe Width 20 mm - All types
- Downloads
-
Data sheet 822 16 A4 / 1013877 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 822 16 A4 / 1013877 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 822 16 A4 / 1013877 , 0.09MB , pdfREACH Declaration of conformity 822 16 A4 / 1013877 , 0.12MB , pdfRoHS Declaration of conformity 822 16 A4 / 1013877 , 0.13MB , pdf
