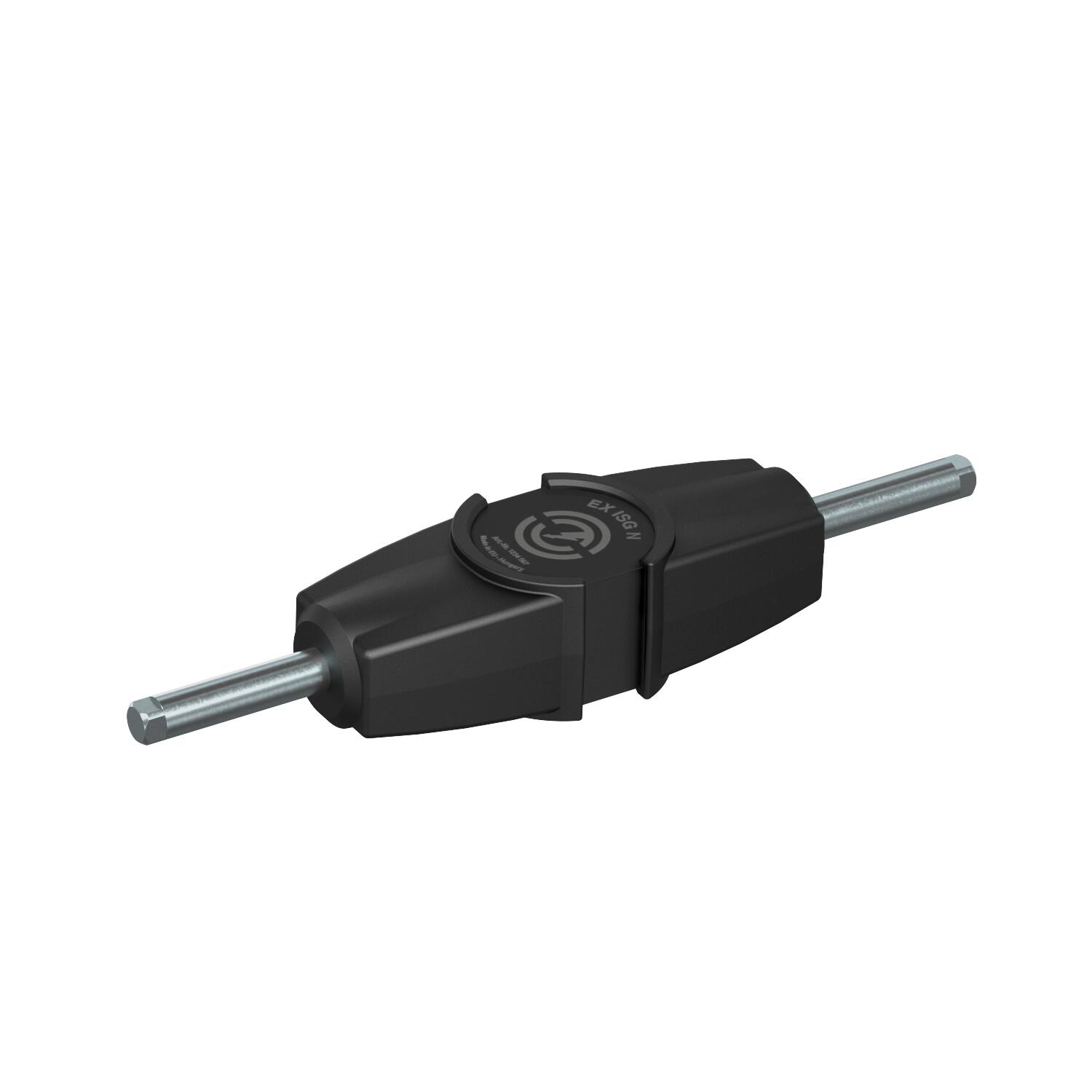

EX ISG N spark gap

Item no. 5240089 | EAN 4012196849574

Item no. / Types	5240089 / EX ISG N

Nominal discharge surge current	100 kA

Product description

Product description

Spark gap for potentially explosive areas, Zone 1/21 and 2/22, for indirect bridging of insulating flanges and insulating threaded joints, e.g. in cathodically corrosion-protected (CCP) systems. For indirect connection of operationally separated system sections during lightning impact. Use according to lightning protection equipotential bonding in accordance with DIN EN 62305/VDE 0185. Suitable for installation in interior and exterior areas and in wet rooms. Particularly low rated contact surge voltage.

• Spark gap to VDE 0185-561-3 (IEC 62561-3)
• Ex certificate to ATEX
• Labelling to EN IEC 60079-0 / EN 60079-1: II 2G Ex db IIC T6 Gb
• Labelling to EN IEC 60079-0 / IEC 60079/31: II 2 D Ex td IIIC T80 °C Db IP67
• Ex certificate to IECEx
• Labelling to IEC 60079-0 / -1: Ex db IIC T6 Gb
• Labelling to IEC 60079-0 / -31: Ex tb IIIC T80 °C Db IP67

Technical data

Technical data

Colour	Black
Connection	Rd 10 mm

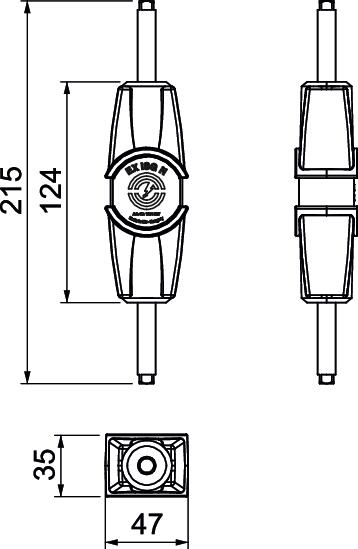

Dimension	215x47x35
Dimension	215x47x35
Lightning current carrying capacity	N/50 kA
Lightning impulse current	50 kA
Material of the connection	Stainless steel, rustproof
Nominal discharge surge current	100 kA

Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Power frequency spark-over voltage	0,64 kV
Protection rating	IP65/67
Rated DC withstand voltage	425 V
Rated impulse sparkover voltage	1,5 kV
Rated power frequency withstand voltage	300 V
