End piece, trunking type WDK 80210 150 | 80 | 210 | Pure white; RAL 9010
morepic-1 morepic-2

End piece, trunking type WDK 80210

Item no. 6193391 | EAN 4012195042587

6193391 / WDK HE80210RW
150 mm
80 mm
210 mm
Pure white; RAL 9010
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 80x210mm

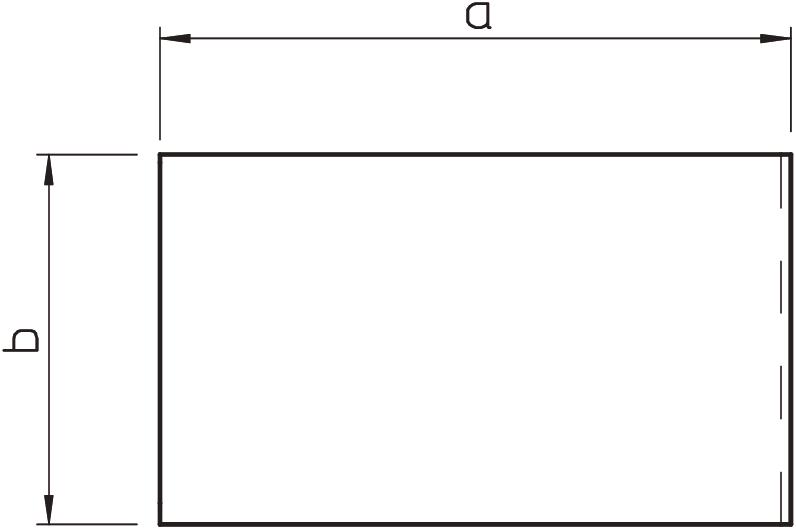

Dimension a 150 mm
Dimension b 80 mm
Dimension H 210 mm
Fastening type Lockable
Halogen-free no
Height 80 mm
Length 150 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 210 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE80210RW 150 mm 80 mm 210 mm Pure white; RAL 9010 6193391
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE80210RW / 6193391 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE80210RW / 6193391 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE80210RW / 6193391 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE80210RW / 6193391 , 0.12MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
