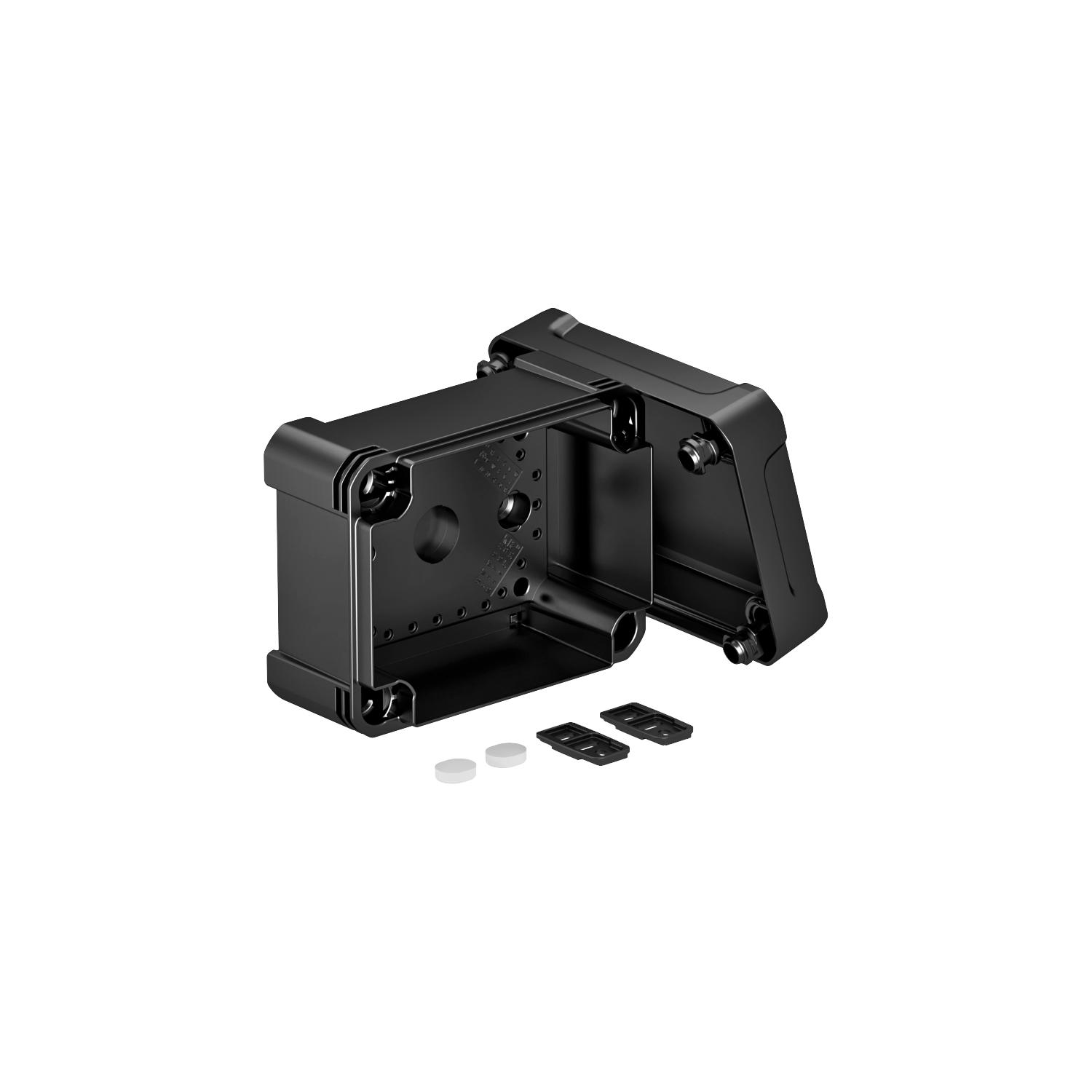

Empty housing X 06

Item no. 2005602 | EAN 4012196580712

137x105x68 mm
IP67
Product description

Product description

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 67
  • Nominal voltage 750 V
  • IK Code 09
Technical data

Dimensions

Clear internal dimensions 137x105x68 mm
Colour Graphite black; RAL 9011
Cover fastening Screwed
Dimension 150x116x86
Extension option no
Height 86 mm
Length 151 mm
Material Polycarbonate
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP67
Protection rating IK code IK09
Shape Rectangular
Suitable for outdoor use yes
Weatherproof yes
Width 117 mm
with lid yes
All types

All types

Types Clear internal dimensions Protection rating Colour Item no. Quantity SSU
X06C LGR 137x105x68 mm IP67 Light grey; RAL 7035 2005462
1 piece
X06C LGR-TR 137x105x68 mm IP67 Grey / transparent 2005532
1 piece
X06C SW 137x105x68 mm IP67 Graphite black; RAL 9011 2005602
1 piece
