Distribution box, 9 division units, with terminal strip, polycarbonate

Item no. 2008848 | EAN 4012196465767

2008848 / SDB 09 PC

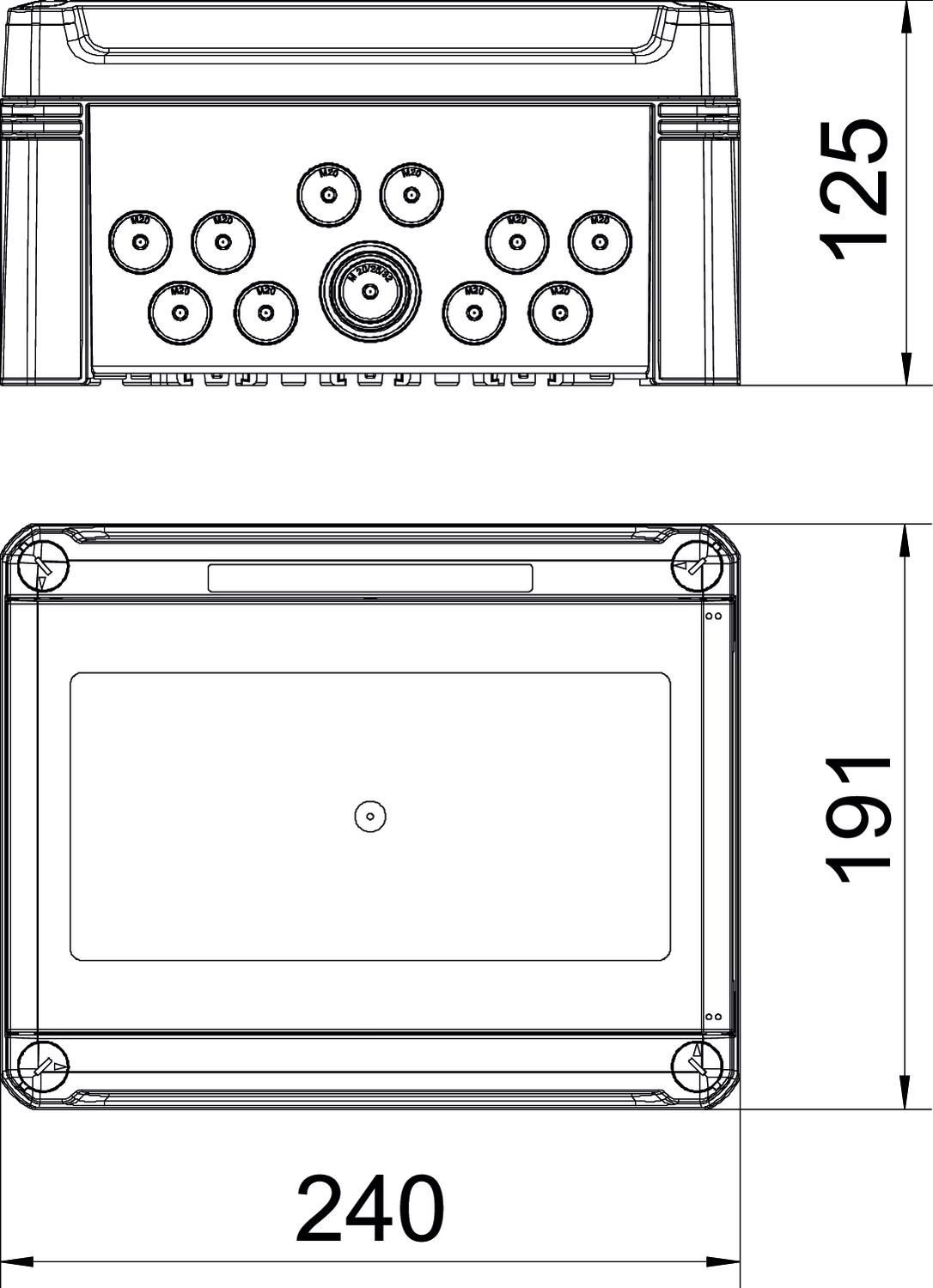

241 mm
191 mm
126 mm
Connector
Product description

Product description

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 9 division units

- Terminal strip set consisting of: One each of: PE/N terminal (1x25 mm² and 1x16 mm² screw terminals, 2x4 mm² and 12x2.5 mm² screwless terminals), mini hat profile rail, mounting instructions and fastening set

- Identification plates for connected consumers

- 6 elastic cable entries Ø20 mm for cable diameters of 0–17 mm

- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm

- 1 elastic cable entry Ø32 mm for cable diameters of 0–28 mm

- 8 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps

- 2 stainless steel external fastenings

- Cover strips for unused division units
Nominal current 63 A
Power loss at 40 K 20.7 W
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • UV-resistant
  • Flame resistant 850 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 66
  • M20 entry
  • M25 entry
  • M32 entry
  • Thread metric
  • Nominal voltage 400 V
  • IK Code 08
Technical data

Technical data

Colour Light grey; RAL 7035
Cover type Cover
Dimension 240x191x125
DIN rail yes
EMC version no
Extension option yes
Height 126 mm
Length 241 mm
Material Polycarbonate
Mounting type, consumer units Structure
Nominal current 63 A
Nominal voltage 400 V
Number of rows 1
Protection rating IP66
Protection rating IK code IK08
Terminals Connector
Transparent lid yes
Version, small distributor cover With cut-out
Width 191 mm
Width in divisional units 9
With lock no
With mounting plate no
All types

All types

Types Length Width Height Terminals Item no. Quantity SSU
SDB 09 PC 241 mm 191 mm 126 mm Connector 2008848
1 piece
