Distribution box, 5 division units, with terminal strip, polystyrene 191 | 151 | 126 | Connector

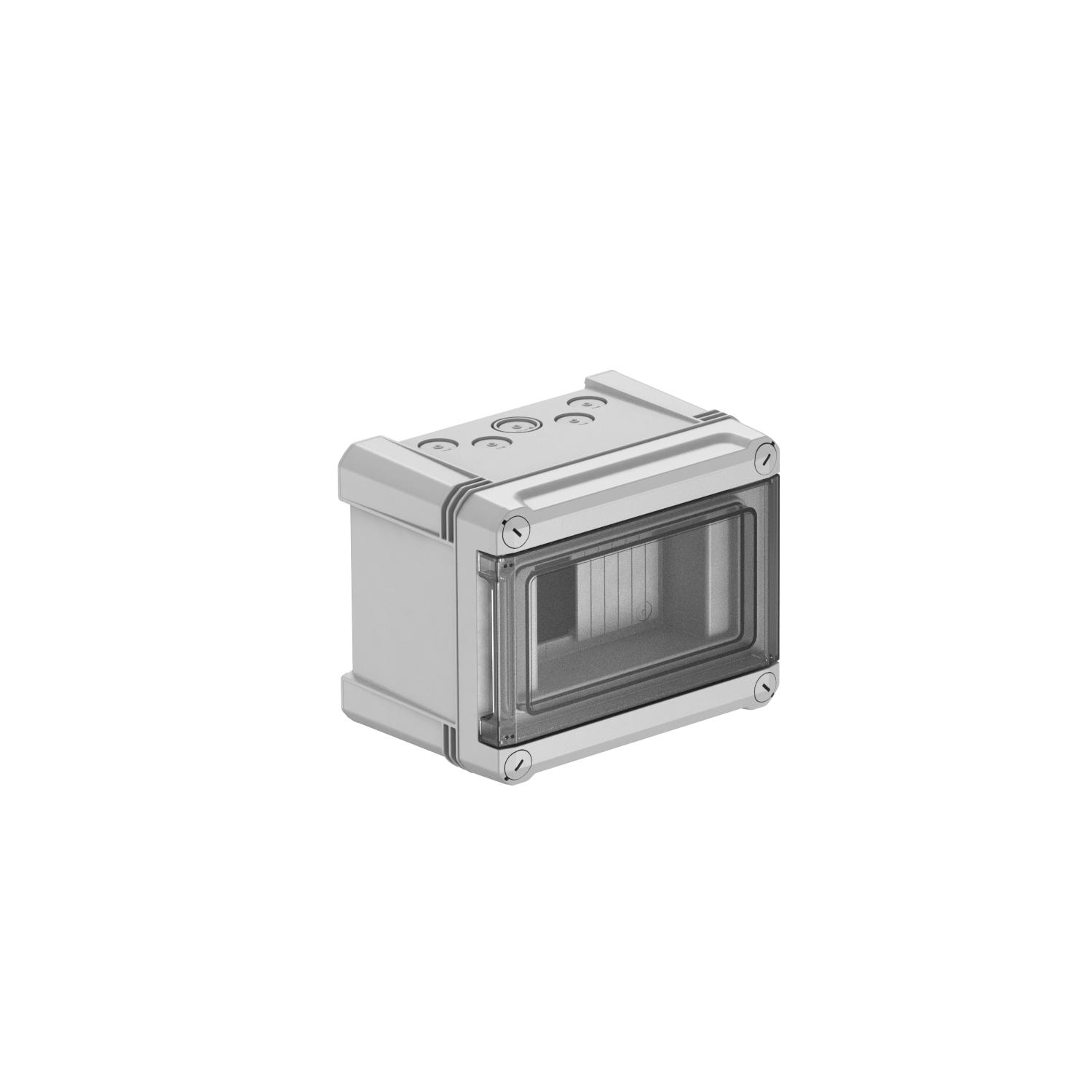

Distribution box, 5 division units, with terminal strip, polystyrene

Item no. 2008804 | EAN 4012196465675

Item no. / Types	2008804 / SDB 05 PS

Length	191 mm

Width	151 mm

Height	126 mm

Terminals	Connector

Product description

Product description

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 5 division units

- Terminal strip set consisting of: One each of: PE/N terminal with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set

- Identification plates for connected consumers

- 4 elastic cable entries Ø20 mm for cable diameters of 0–17 mm

- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm

- 4 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
Nominal current 40 A
Power loss at 40 K 19 W

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover
Dimension	190x150x125
DIN rail	yes
EMC version	no
Extension option	yes
Height	126 mm
Length	191 mm
Material	Polystyrene
Mounting type, consumer units	Structure
Nominal current	40 A

Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK07.
Terminals	Connector
Transparent lid	yes
Version, small distributor cover	With cut-out
Width	151 mm
Width in divisional units	5
With lock	no
With mounting plate	no
