Device support SL 2GT20110
Item no. 6132250 | EAN 4012196726462
- Product description
-
Product descriptionDevice support with pre-terminated double protective contact socket for the skirting trunking in the trunking width 110 mm.
-
- Technical data
-
Technical data

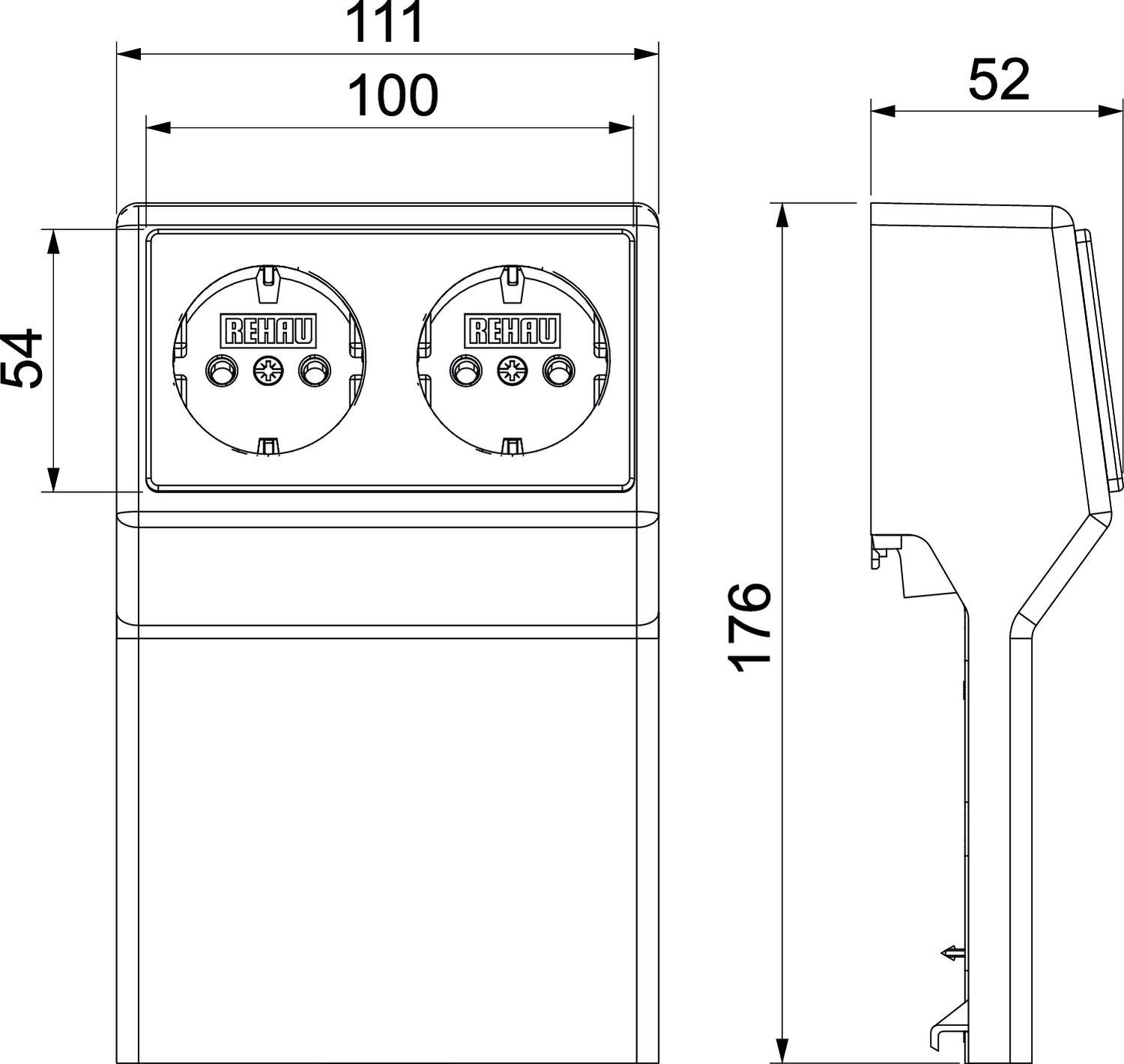

Accessory mounting type Pre-equipped Colour Pure white; RAL 9010 Decoration Without Equipment 2x protective contact socket Halogen-free no Height 176 mm Length 52 mm Material Polyvinylchloride Number of units 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Width 111 mm - All types
- Downloads
-
Data sheet SL2GT20110 rws / 6132250 , 0.25MB , pdfEU declaration of conformity SL2GT20110 rws / 6132250 , 0.10MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfMounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdfNo invitation to tender text is available for this product.
