Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4

Item no. 5312346 | EAN 4012195893103

5312346 / 252 8-10x16 V4A
Rd 8-10 x 16 mm
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Fit: Rd 8-10 x Rd 16 / FL 30

• With adapter plate

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
  • Lightning current-tested
Technical data

Technical data

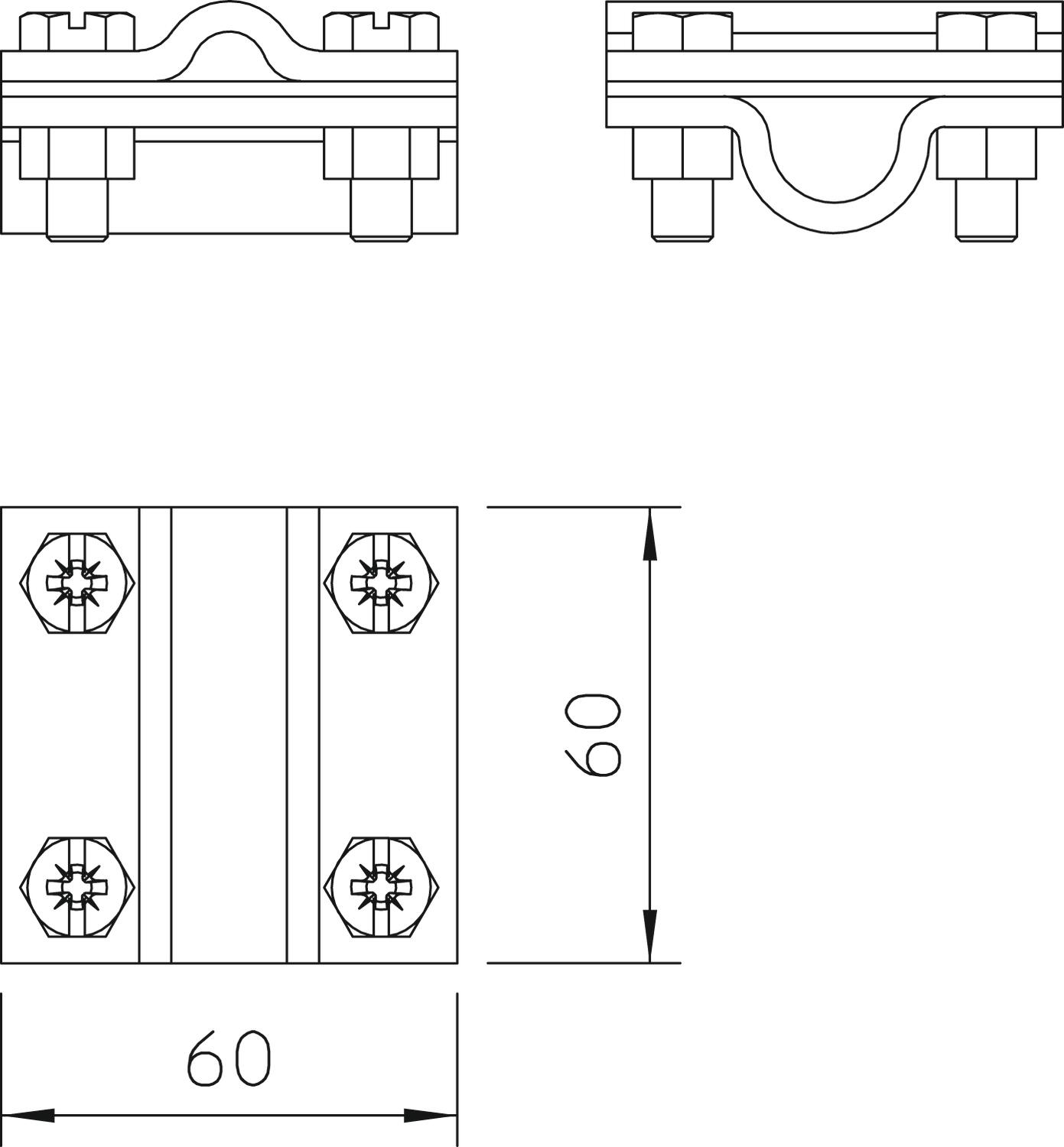

Dimension 8-10mm
Dimension A 60 mm
Dimension B 60 mm
Fit Rd 8-10 x 16 mm
Intermediate plate yes
Lightning current carrying capacity H/100 kA
Material Stainless steel
Suitable for connection Round conductor Rd 8-10 / Rd 16
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
252 8-10x16 V4A Rd 8-10 x 16 mm 5312346
10 piece
