Cover for tee FS 500 | 1.25

morepic-1

morepic-2

Cover for tee FS

Item no. 6226106 | EAN 4012196535477

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering T pieces with welded rungs.

Technical data

Technical data

Dimension	B500
Dimension B	500 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Strip galvanized
Wide-span version	no
Width	500 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LTD 200 R3 FS	200 mm	1 mm	6226100	piece	1 piece
LTD 300 R3 FS	300 mm	1 mm	6226102	piece	1 piece
LTD 400 R3 FS	400 mm	1 mm	6226104	piece	1 piece
LTD 500 R3 FS	500 mm	1.25 mm	6226106	piece	1 piece
LTD 600 R3 FS	600 mm	1.25 mm	6226108	piece	1 piece

Downloads

Data sheet LTD 500 R3 FS / 6226106 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LTD 500 R3 FS / 6226106 , 0.10MB , pdf

UK Declaration of Conformity LTD 500 R3 FS / 6226106 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic LTD 500 R3 FS / 6226106, 28.79 kB, jpg

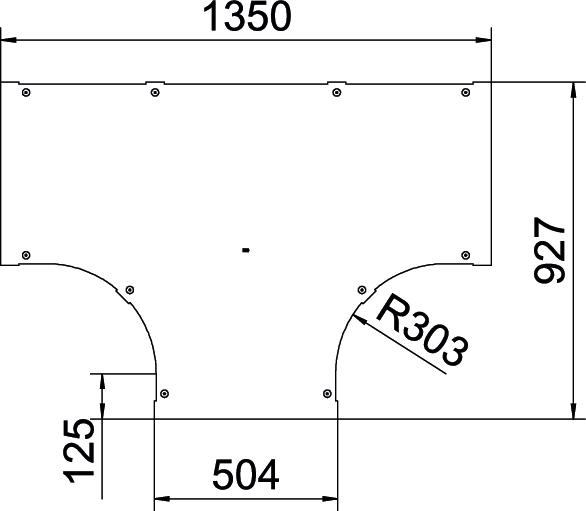

Scale drawing LTD 500 R3 FS / 6226106, 58.19 kB, jpg

LTD 500 R3 FS / 6226106
