- Product description
-
Product description

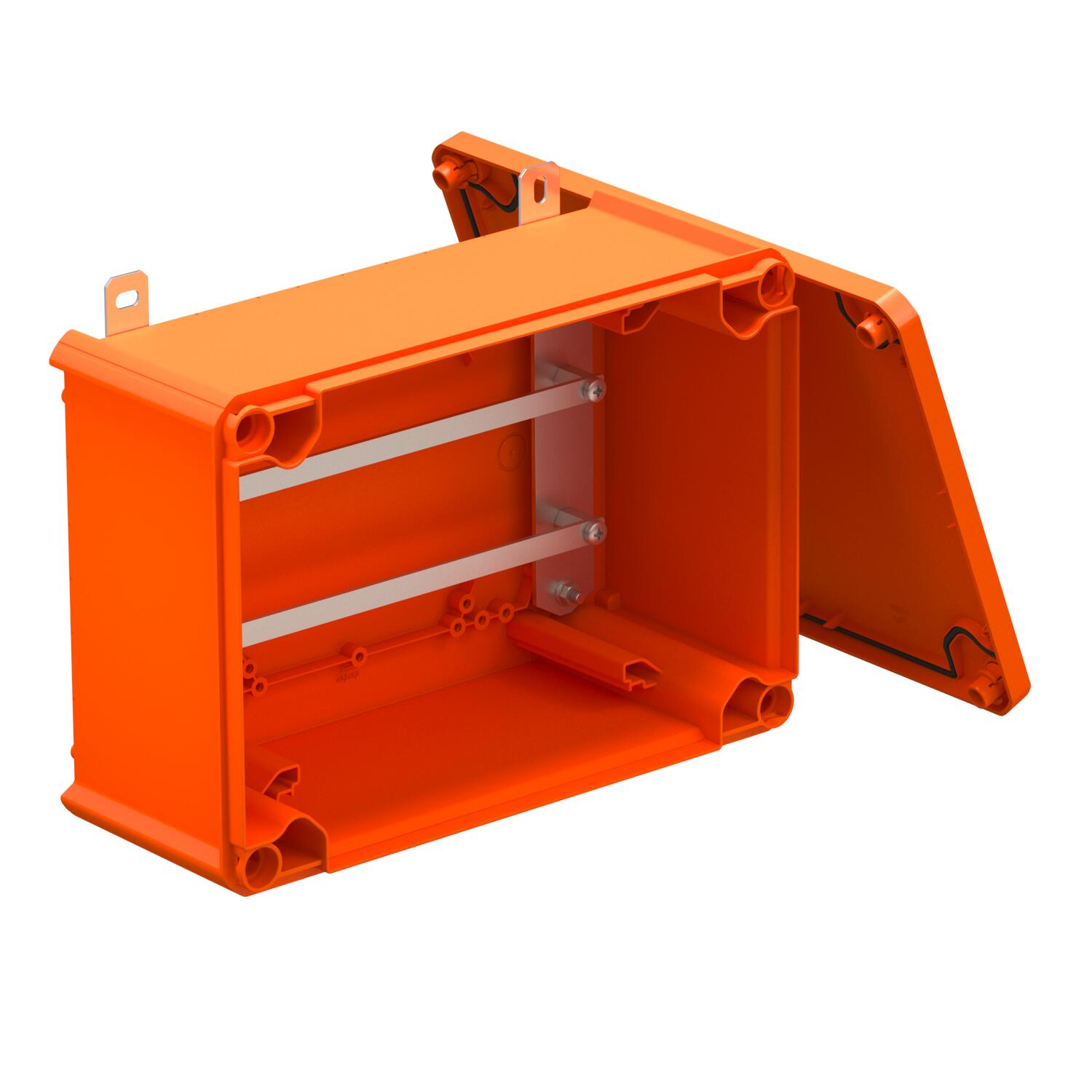

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.
- Technical data
-
Technical data
Colour Pastel orange; RAL 2003 Cover Not transparent Cover fastening Screwed Dimension 285x201x120 Entry from rear no Equipment Support rail Halogen-free yes Maintain electrical functions E 90 Material Polypropylene Nominal cross-section, max. 16 mm² Nominal cross-section, min. 0,5 mm² Protection rating IP66 Sealable no with lid yes With screening no Dimensions

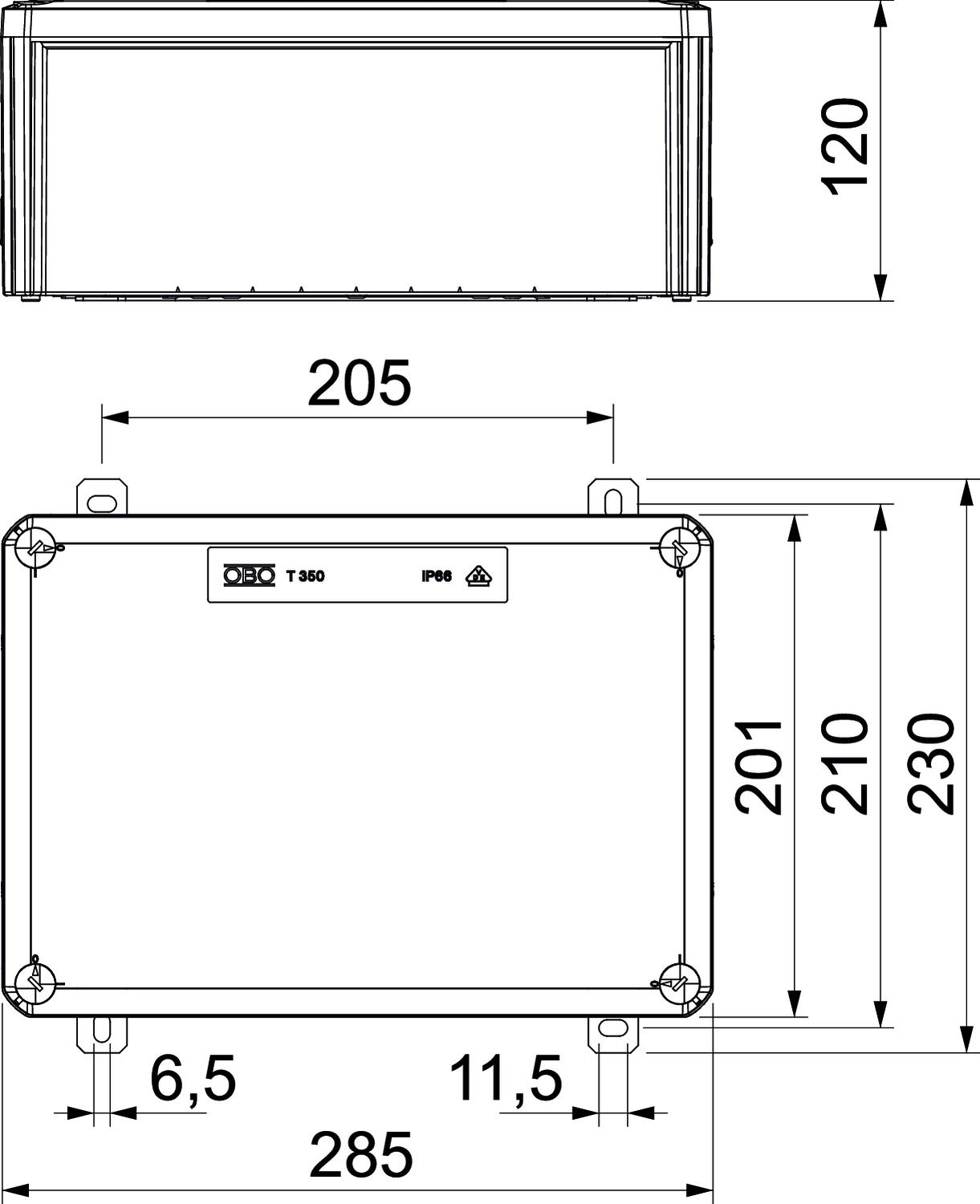

Clear internal dimensions 267x182x110 mm Dimension A 386 mm Dimension B 201 mm Dimension H 120 mm Dimension L 285 mm Dimension L1 205 mm Dimension L2 230 mm Height 120 mm Length 285 mm Width 201 mm - All types
-
All types
- Downloads
-
Data sheet T350E 0VA / 7205786 , 0.36MB , pdfBrochure FireBox , 2.61MB , pdfBrochure Brochure The Experts , 2.10MB , pdfDeclaration of conformity T350E 0VA / 7205786 , 0.13MB , pdfREACH Declaration of conformity T350E 0VA / 7205786 , 0.12MB , pdfRoHS Declaration of conformity T350E 0VA / 7205786 , 0.12MB , pdfMounting instructions Firebox , 3.18MB , pdf
