Cable tray, marine standard FS
Item no. 6046375 | EAN 4012196517305
- Product description
-
Product descriptionCable tray for use in ship construction, produced according to the marine standard VG 88900-1.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 4,952 kg CO₂e / 1 Meter Dimension 15x125x2000 Dimension B 125 mm Height 15 mm Length 2000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern yes Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,2 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 125 mm With cover no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Tightening strap A2K Jet black
SBR 8 A2K 6490192 40 m

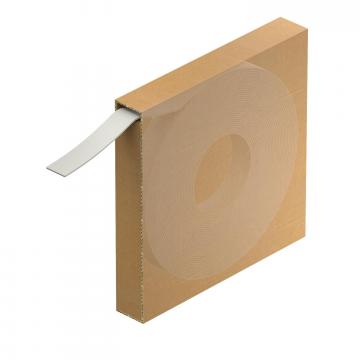

Tightening strap FSK, Stone grey
SBR 15 FSK 6490280 25 m - Downloads
-
Data sheet MKR 15 125 FS / 6046375 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity MKR 15 125 FS / 6046375 , 0.11MB , pdfREACH Declaration of conformity MKR 15 125 FS / 6046375 , 0.12MB , pdfRoHS Declaration of conformity MKR 15 125 FS / 6046375 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
