Cable tray LKS 60 FS RU 400 - 600 mm perforated
Item no. 6048920 | EAN 4012196625864
- Product description
-
Product descriptionLight-duty cable tray system for routing low loads.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

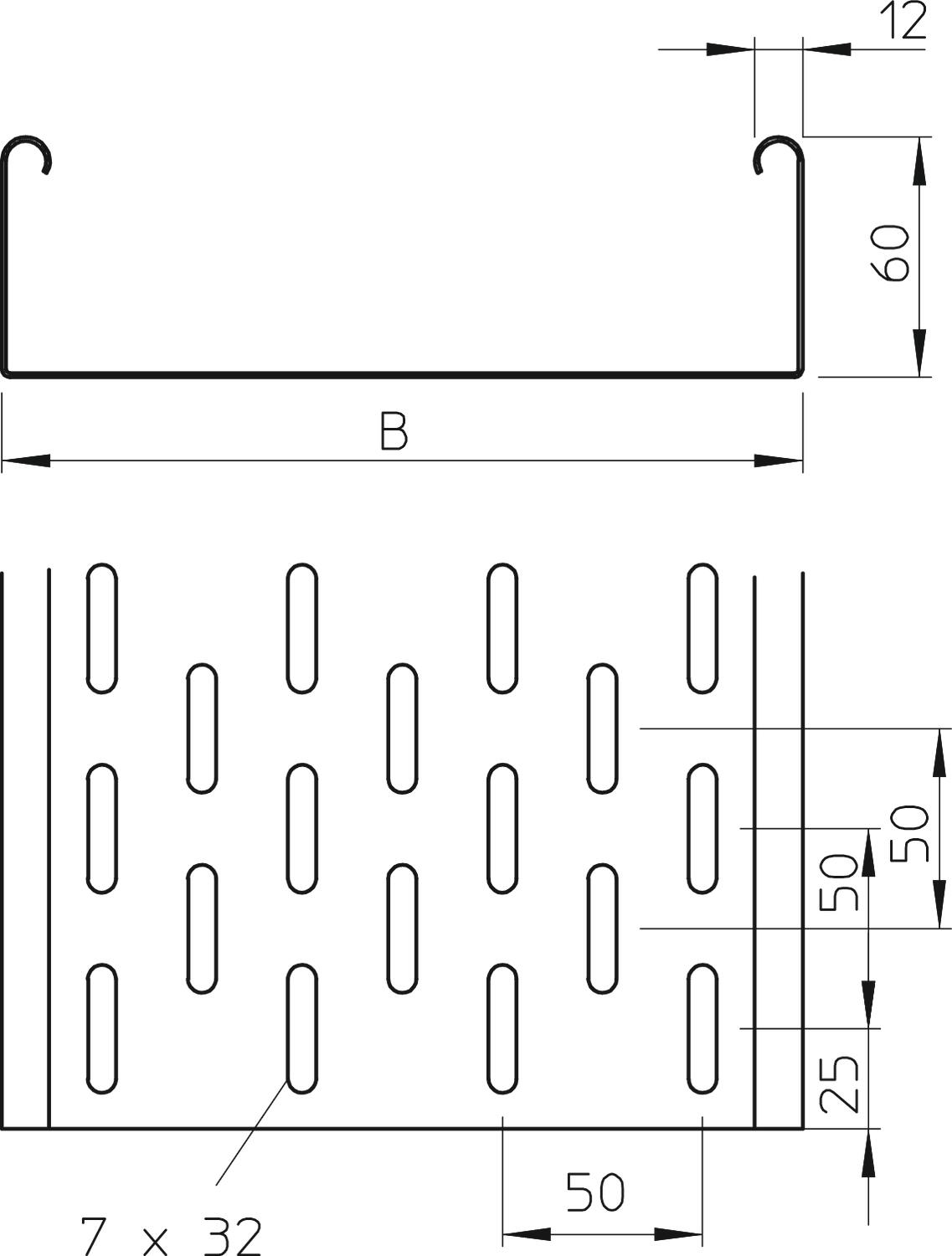

Colour zinc Connector version Without connectors Dimension 60x400x3000 Dimension B 400 mm Dimension L 3000 mm Height 60 mm Length 3000 mm Load test type according to IEC 61537 Type III Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,9 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,5 kN/m Support spacing 1.5 m 0,9 kN/m Support spacing 2.0 m 0,55 kN/m Support spacing 3.0 m 0,3 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 238 cm² Usable cross-section 23800 mm² Wide-span version no Width 400 mm With cover no Technical data
Load diagram, cable tray, type LKS 60 FS RU
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
Tested according to testing type III (EN 61537 - 10.3.3.)
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
60 FS straight connector
RLVK 60 FS RU 6067091 10 piece
45° bend 60 FS
RBL 45 640 FS RU 6043688 1 piece
90° bend 60 FS
RBL 90 640 FS RU 6043098 1 piece
Unperforated lid FS
DRLU 400 FS RU 6052027 3 m - Downloads
-
Data sheet LKS 640 FS RU / 6048920 , 0.29MB , pdfCatalogue Cable support systems , 2.10MB , pdfEU declaration of conformity LKS 640 FS RU / 6048920 , 0.10MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
