Cable ladder with Z rung, standard ALU
Item no. 7099772 | EAN 4012196510054
- Product description
-

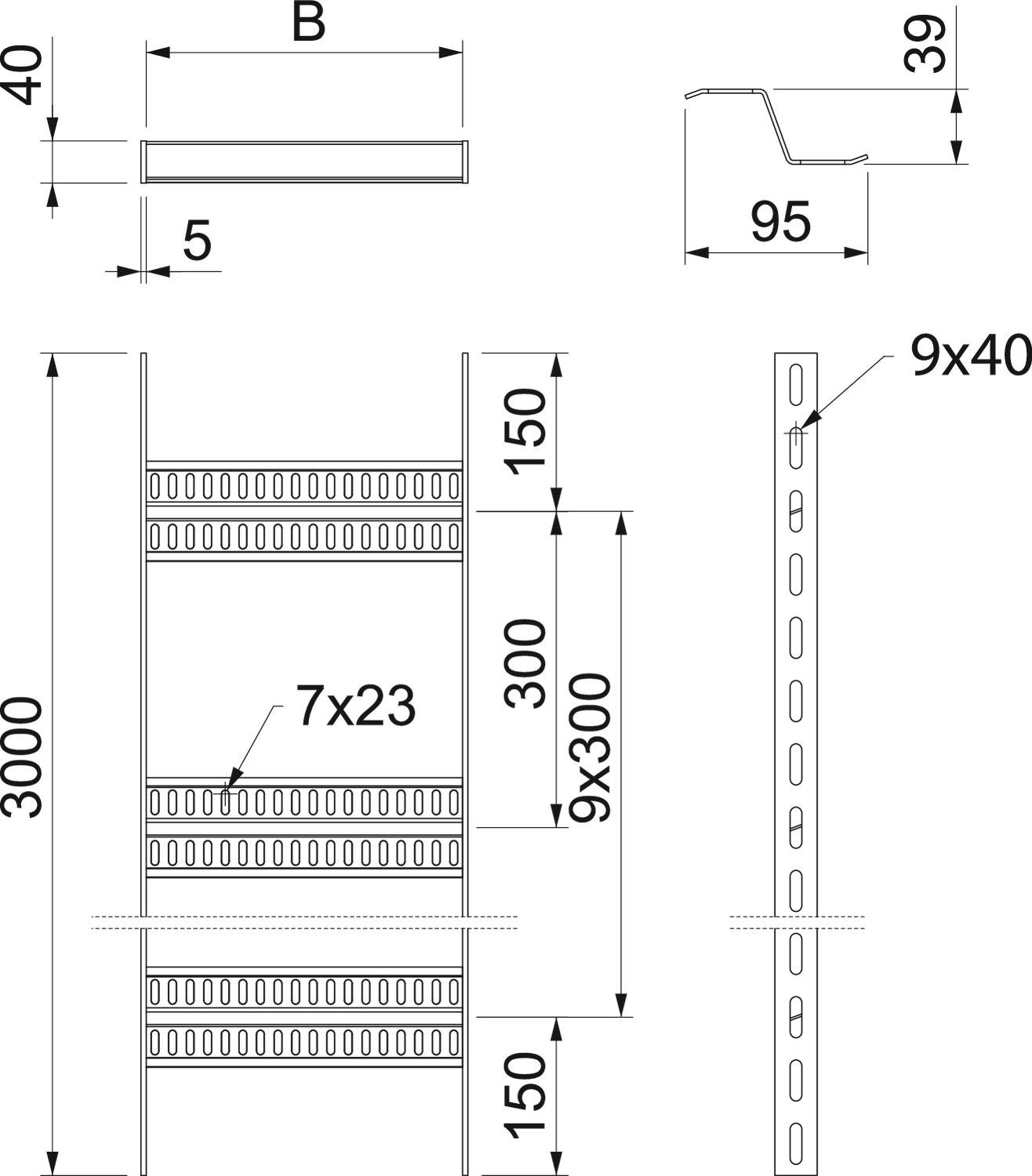

Product descriptionShipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated Z rungs.
-
- Technical data
-
Technical data
Colour aluminium CO₂ Footprint (GWP) Cradle-to-Gate 17,133 kg CO₂e / 1 Meter Dimension 40x110x3000 Dimension B 110 mm Fastening of rung Welded Height 40 mm Length 3000 mm Length 3000 ft Maintain electrical functions no Material Aluminium Rail thickness 5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 1,4 kN/m Support spacing 2.0 m 0,65 kN/m Support spacing 2.5 m 0,35 kN/m Support spacing 3.0 m 0,2 kN/m Surface Pickled Version of the rungs Profile perforated Wide-span version no Width 100 mm Technical data
Load diagram, cable ladder, type SLZ ALU
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
90° bend with Z rung, ALU
SLZB 90 100 ALU 7099090 1 piece - Downloads
-
Data sheet SLZ 100 ALU / 7099772 , 0.30MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SLZ 100 ALU / 7099772 , 0.11MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
