Cable ladder LCIS 60, 3 m C30 FT 3000 | 600 | 1.5 | no

Cable ladder LCIS 60, 3 m C30 FT

Item no. 6209729 | EAN 4012196431779

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

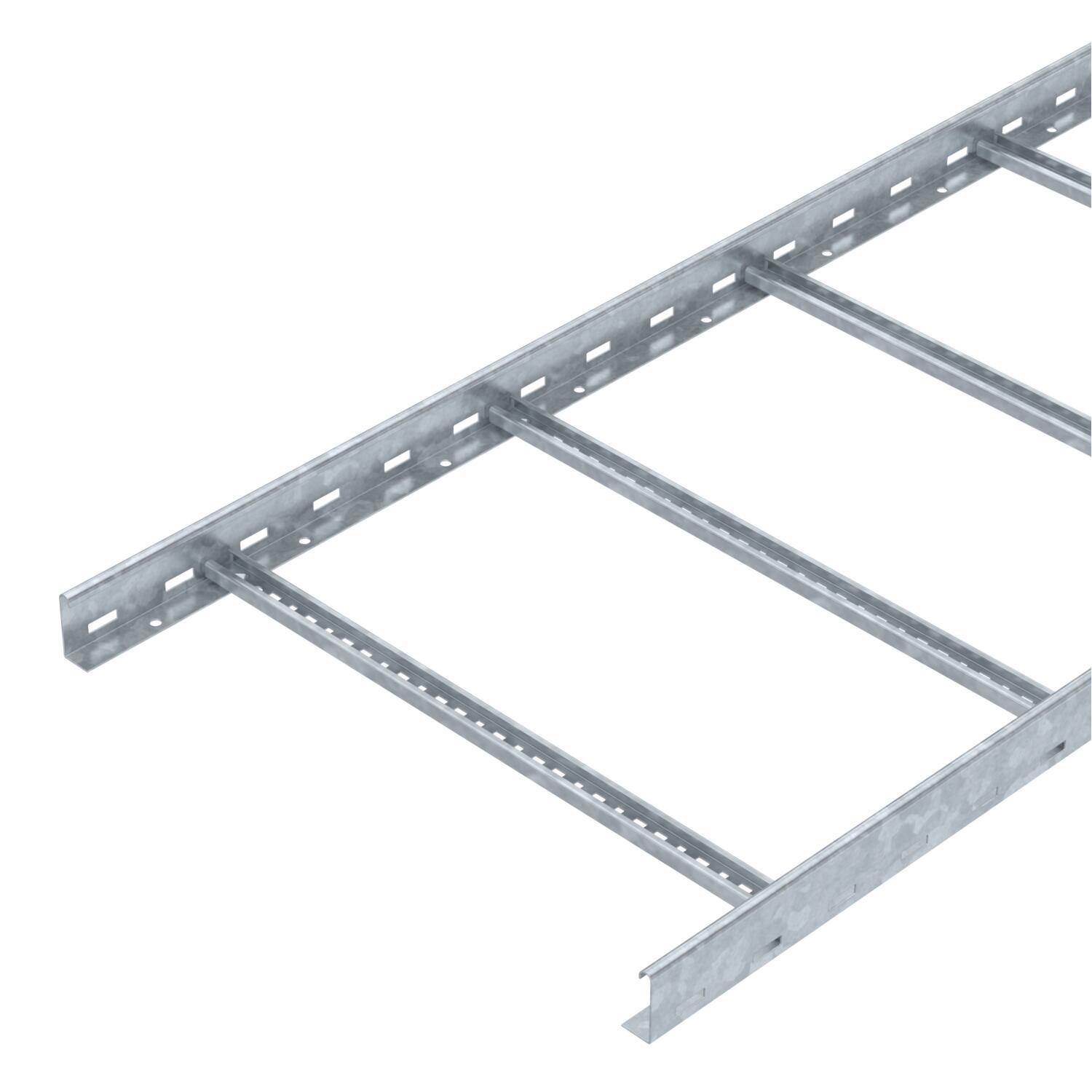

Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H....
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	8,782 kg CO₂e / 1 Meter

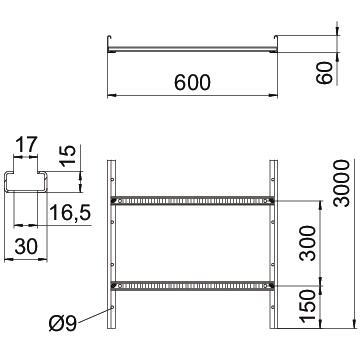

Dimension	60x600x3000
Dimension B	600 mm
Fastening of rung	Welded
Height	60 mm
Length	3000 mm
Length	3000 ft
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,3 kN/m
Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,78 kN/m
Support spacing 4.0 m	0,4 kN/m
Surface	Hot-dip galvanised
Usable cross-section	240 cm²
Usable cross-section	24000 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	600 mm

Technical data

Load diagram, cable ladder, type LCIS 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 620 3 FT	3000 mm	200 mm	1.5 mm	no	6209721	m	3 m
LCIS 630 3 FT	3000 mm	300 mm	1.5 mm	no	6209723	m	3 m
LCIS 640 3 FT	3000 mm	400 mm	1.5 mm	no	6209725	m	3 m
LCIS 650 3 FT	3000 mm	500 mm	1.5 mm	no	6209727	m	3 m
LCIS 660 3 FT	3000 mm	600 mm	1.5 mm	no	6209729	m	3 m

Accessories

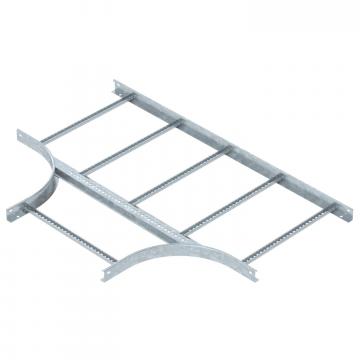

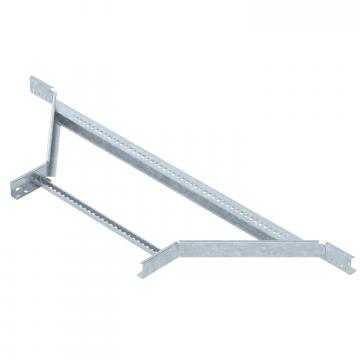

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 60 FT	6208843	piece	10 piece
90° bend 60 FT	LB 90 660 R3 FT	6225070	piece	1 piece
Multifunctional connector FT	LMFV 660 FT	6225738	piece	1 piece
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
Barrier strip 45 DD	TSG 45 DD	6062321	m	3 m
Drop-out plate FT	LAB 60 FT	6220479	piece	1 piece
