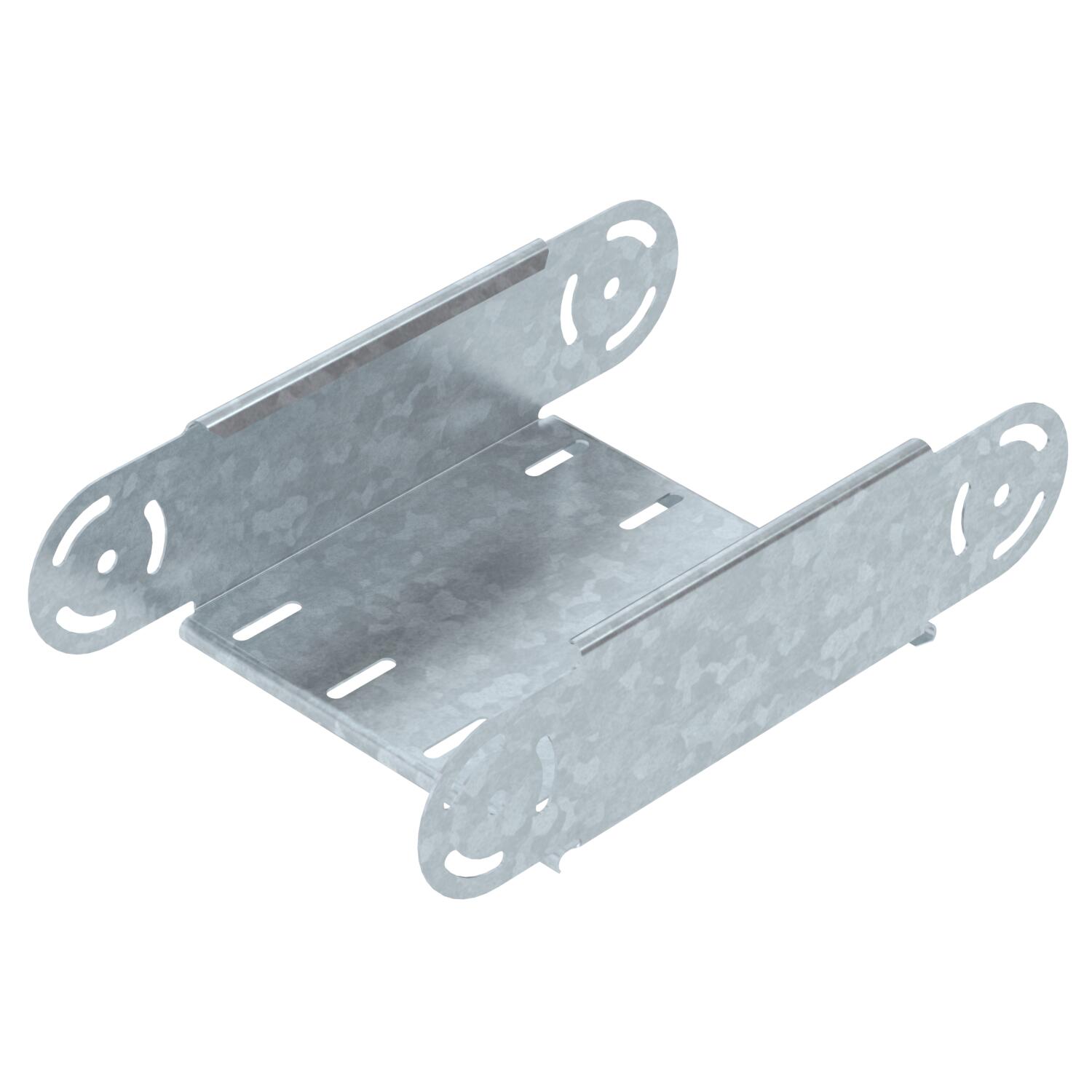

Adjustable bend element, vertical 85 FT
Item no. 7076207 | EAN 4012196228492
- Product description
-
Product descriptionAdjustable vertical bend element, for all cable tray types with a side height of 85 mm.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Without connectors Dimension 85x200 Dimension B 200 mm Height 3 in Height 85 mm Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type Adjustable bend element Type of connector, cable support system Screwed Wide-span version no Width 8 in Width 200 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Adjustable connector FT
RGV 85 FT 7082320 10 piece - Downloads
-
Data sheet RGBEV 820 FT / 7076207 , 0.18MB , pdfEU declaration of conformity RGBEV 820 FT / 7076207 , 0.10MB , pdfUK Declaration of Conformity RGBEV 820 FT / 7076207 , 0.09MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
